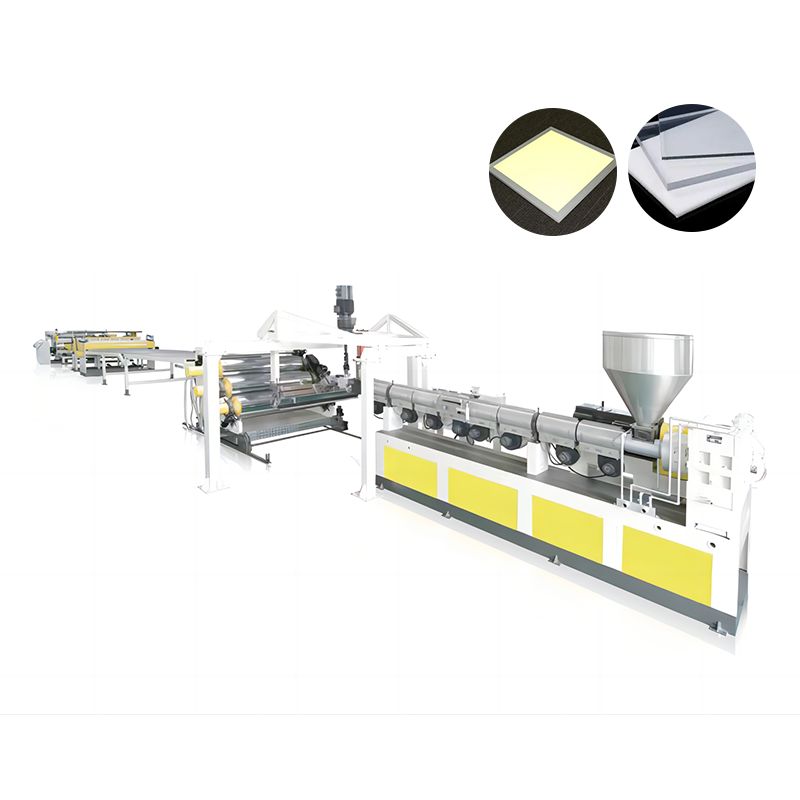

GPPS Diffuser Sheet Extrusion Machine
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

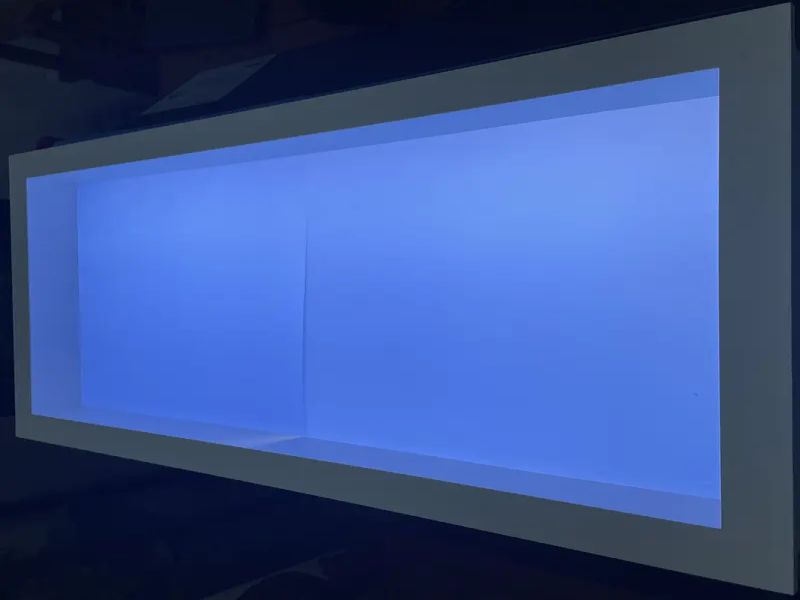

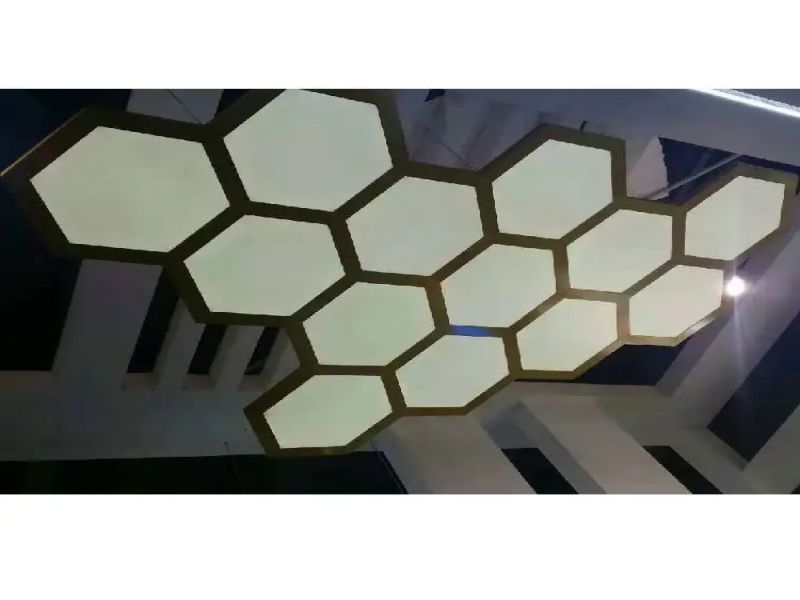

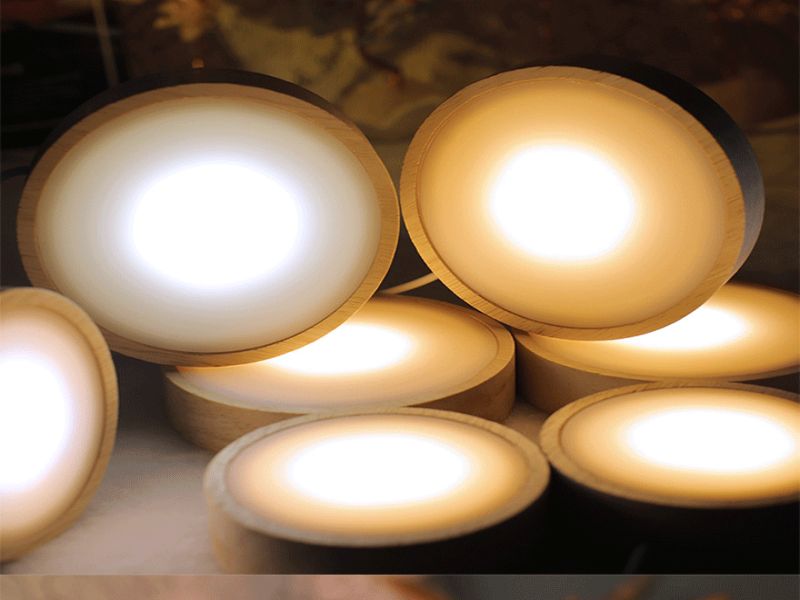

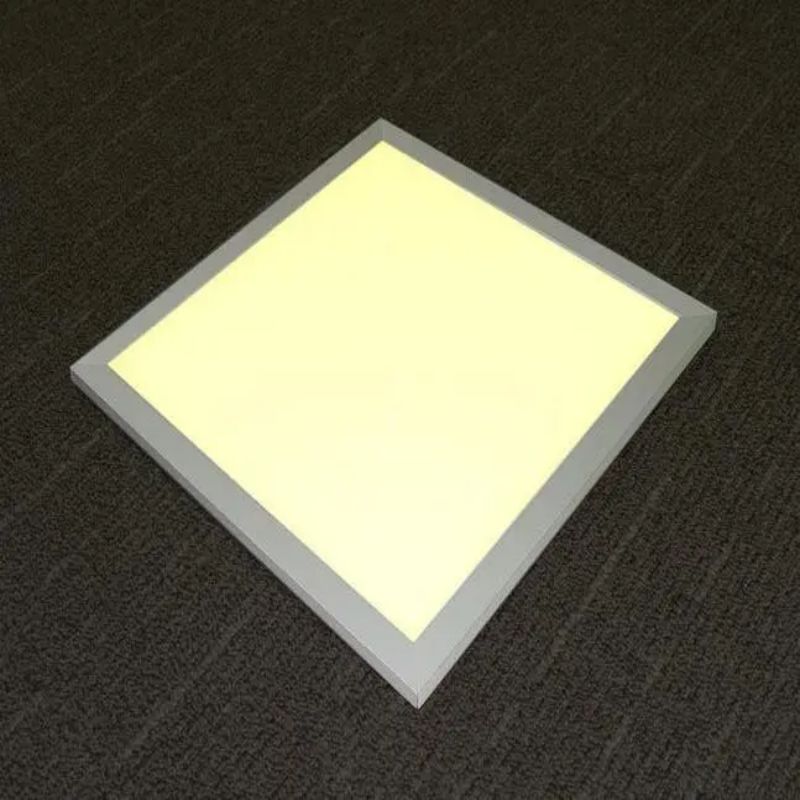

The diffusion plate extrusion line provided by JWELL company can be used to produce GPPS diffusion plate, diffusion plate can be used for downlight、grille lamp and advertising lamp box,with light guide plate usually used together.
Description
Light diffusion plates use the physical phenomena of refraction, reflection and scattering when light encounters two media with different refractive indexes. By adding inorganic or organic light diffusing agents to base materials such as GPPS, light diffusion plates are widely used. Used in liquid crystal displays, LED lighting and imaging display systems.
Specifications
| Model | JW-150-2400 | JW-130-1900 | JW-120-1500 |
| Suitable material | GPPS, MS, PC, PP | ||
| Products width | 2100mm | 1600mm | 1250mm |
| Products thickness | 1-3mm | 1-3mm | 1-3mm |
| Extruder model | JWS150/35 | JWS130/35 | JWS120/35 |
| Max extrusion capacity | 700Kg/h | 550Kg/h | 400Kg/h |

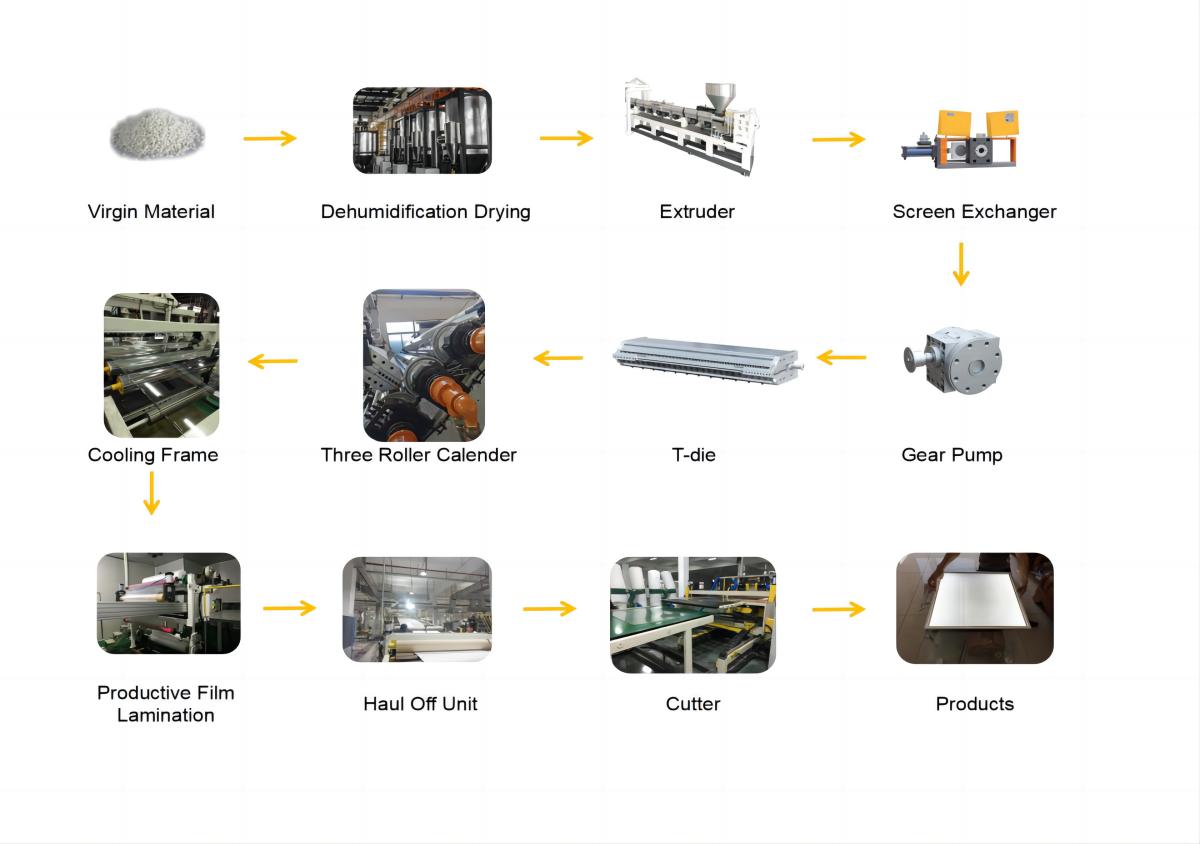

Process steps
Reviews
-
PP thick plate extrusion line
One of the most reliable and trustworthy Extrusion Machine Manufacturers in China.Excellent company that I have worked with for many years. I have never had an issue with any of my product and they have produced hundreds of thousands of feet for me. Highly recommend.
Savan
Vietnam
-
PET Sheet Extrusion Line
WELL have been a great partner for us throughout the years. Our experience has included great customer experience, timely responses, fair pricing, and quick turn around. I value the business they provide and would recommend them any day.
Mohamed Abo HalimaTurkey
-
PC sunshine board
I've worked with JWELL for the past 8 years.They are my #1 vendor. They are consistently providing excellent service and perfect quality products...as well, they are really nice folks to work with, who go above and beyond on a daily basis, and when something "special" is needed, they are always willing to accommodate my request.
Wael El-Sayed
Turkey
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
