High Polymer Composite Waterproof Roll Extrusion Line
High Polymer Composite Waterproof Roll Extrusion Line
High Polymer Composite Waterproof Roll Extrusion Line
High Polymer Composite Waterproof Roll Extrusion Line

High Polymer Composite Waterproof Roll Extrusion Line


Place of Origin:China
Brand Name:Jwell
Certification:ISO CE UL TUV
Competitive advantage:
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience
Add to Basket
Applications

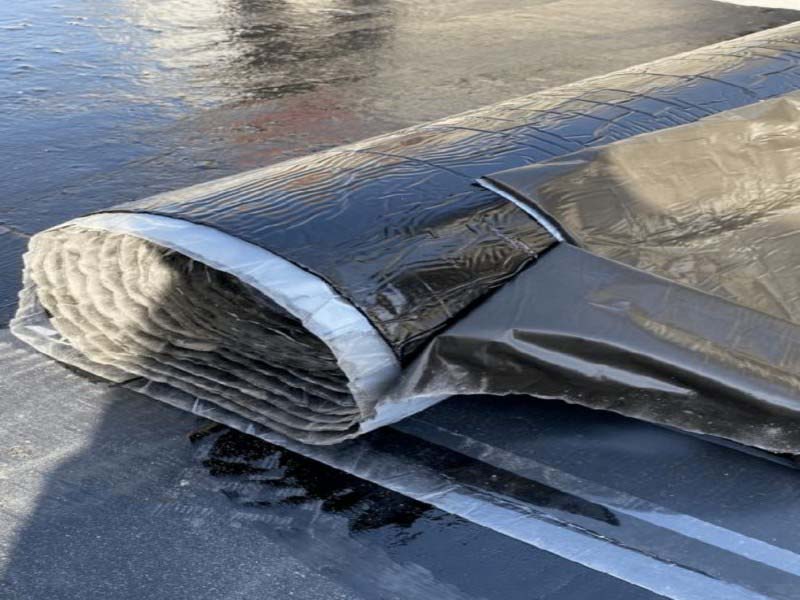

Widely used in various building structures of the roof, wall, bathroom, basement, cold storage, bridge, pool, underground pipeline and other engineering waterproof, anti-seepage, moisture-proof, air isolation, etc.

Description

Applied to PVC, TPO, PE and other various plastic material, the following plates can be produced:

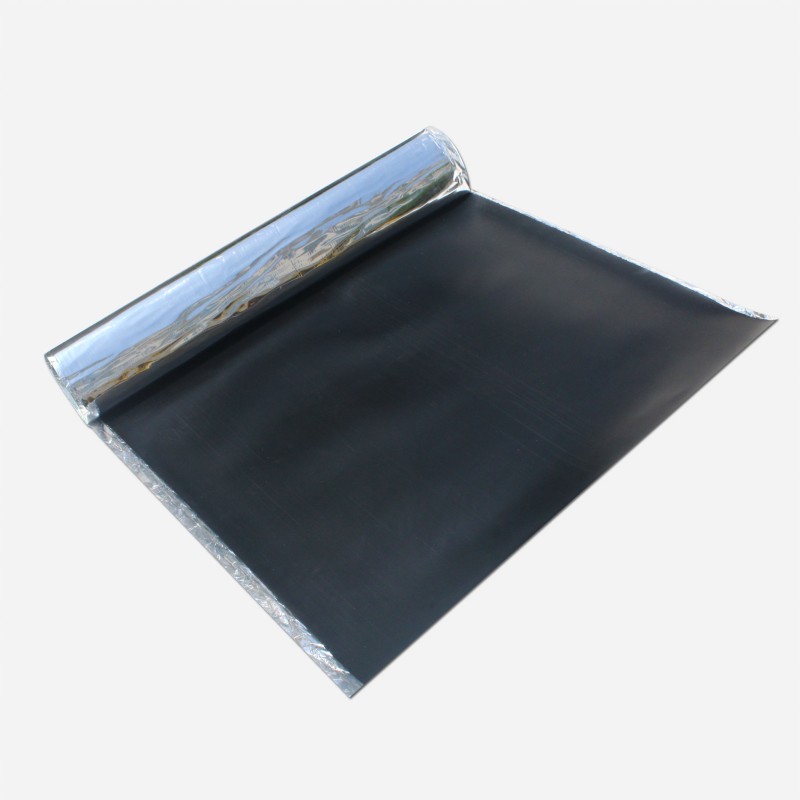

Roll sheet with outer fiber (Model: L): Coating with fiber or non-woven fabric.
Inner reinforced roll sheet (Model: P): Inner layer coats with polyester mesh. Inner reinforced roll sheet (Model: G): Inner layer coats with glass fiber.

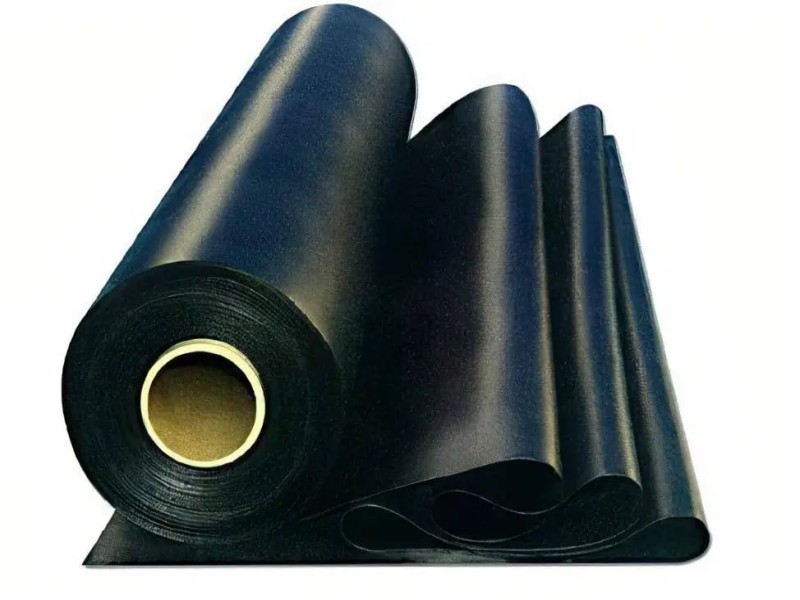

Plastic roll sheet (model: H): Without coating with inner reinforced material or outer material.

Specifications
ModelSJZ92/188-SJZ80/156SJP130/36-SJZ92/188JWS150—JWS120
Products width1200-2000mm2000mm2000mm
Products thickness0.5-3.0mm0.5-3.0mm1-2mm
Capacity800-900kg/h1200-1300kg/h1000-1100kg/h

Note:The specifications are subject to change without prior notice.

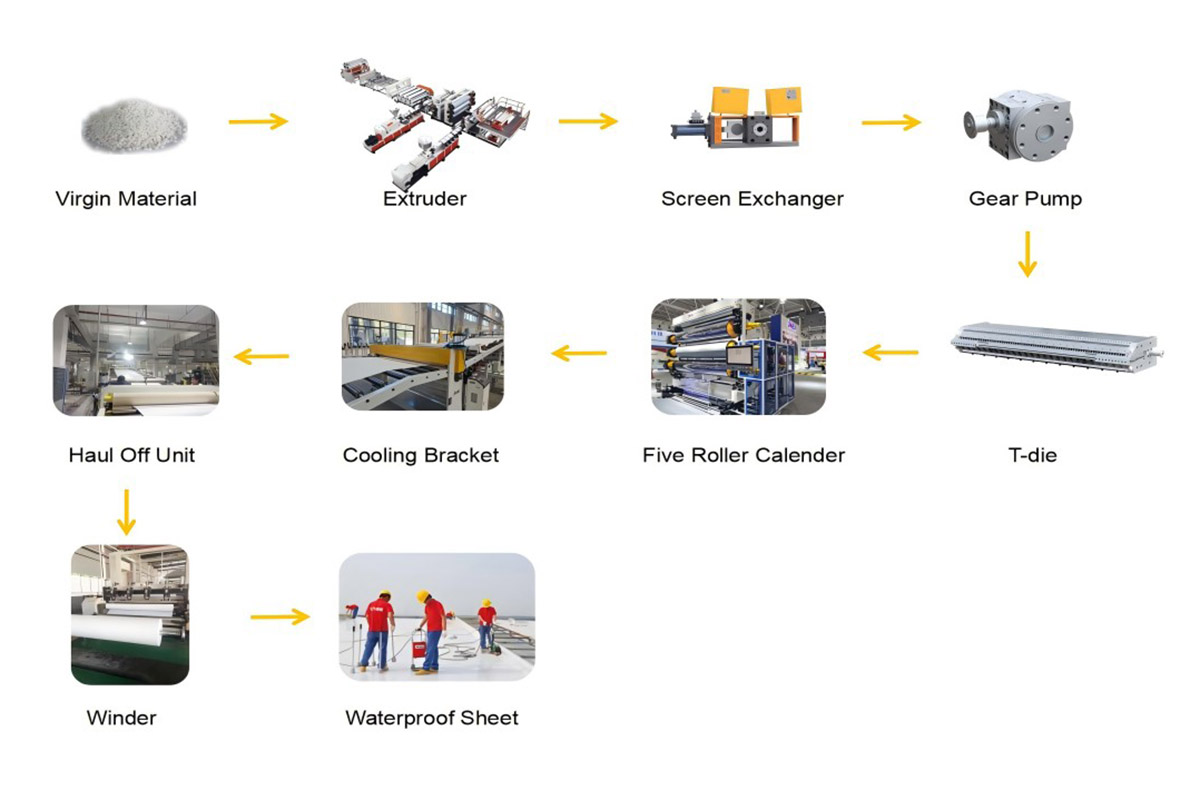

Process steps

progess
