Twin Screw Dyer-free Vented PET Sheet Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 110 days |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
Applications

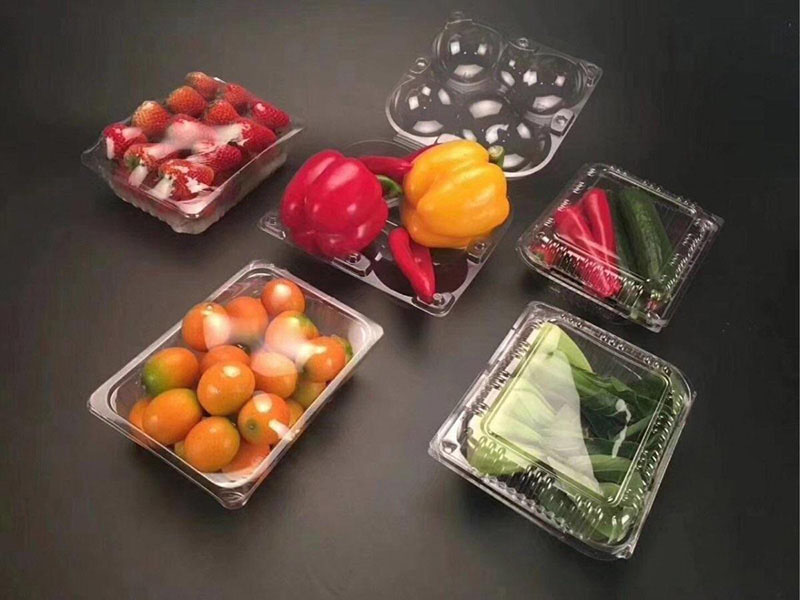

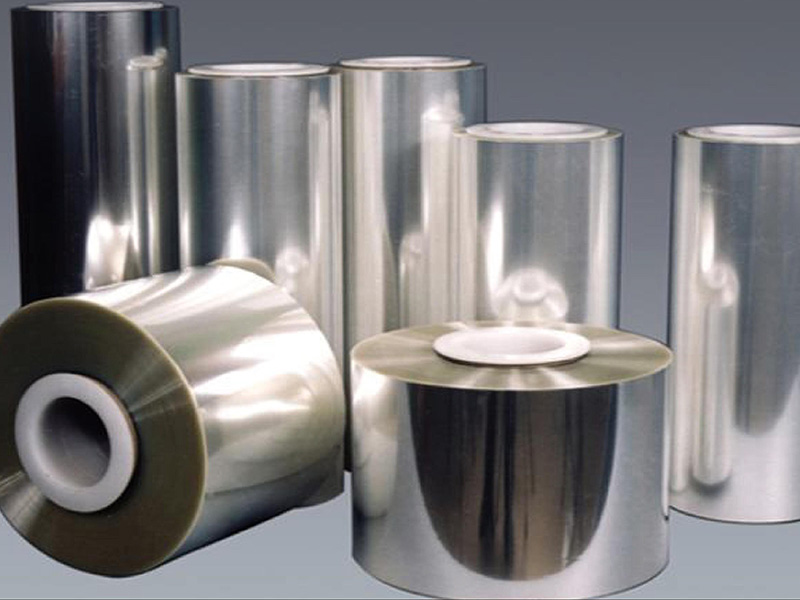

PETG film has the characteristics of high gloss, high transparency, impact resistance, friction resistance, scratch resistance and cold resistance. It is commonly used in decoration and packaging, such as furniture board, door board, cosmetics packaging, high cycle processing, etc.
Description

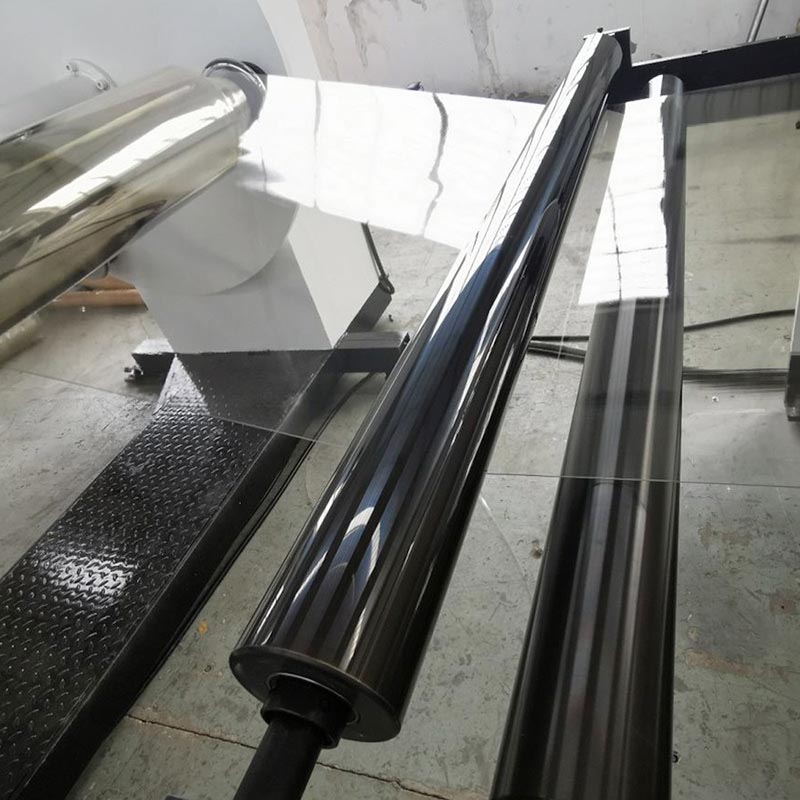

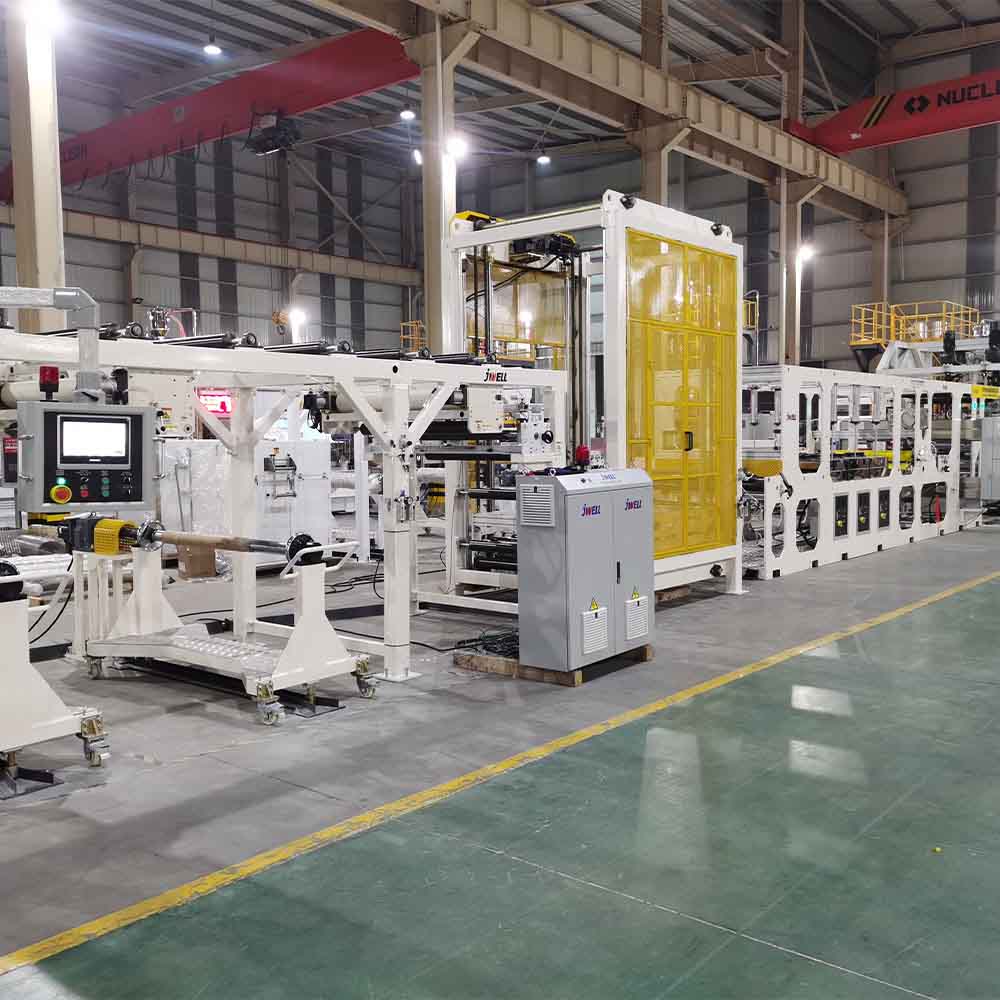

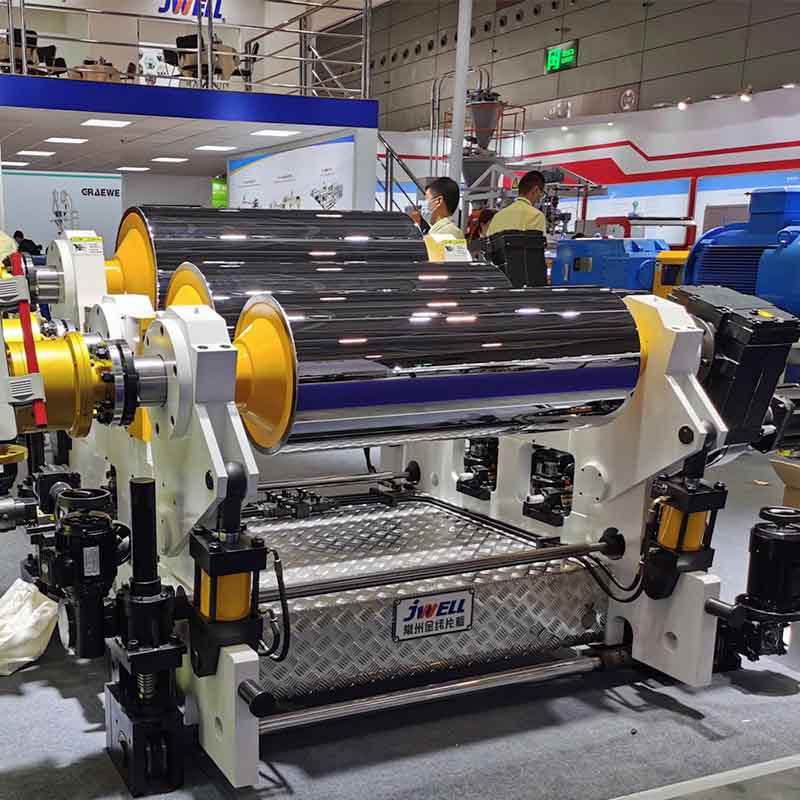

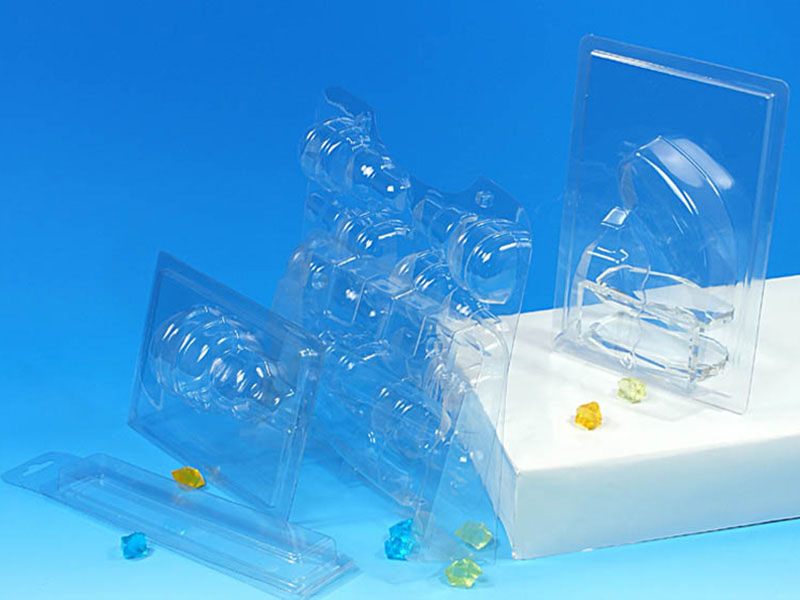

Jwell develops the parallel twin screw extrusion line for PET sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy consumption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET resin, the symmetrical and thin-wall calender roller heighten the cooling effect and improve the capacity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for the thermoforming packaging industry.
Video
Specifications
| Model | Multi layer | Single layer | Highly-efficient |
| Extruder specification | JW75&36/40-1000 | JW75/40-1000 | JW95&52/44-1500 |
| Product thickness | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main motor power | 110kw/45kw | 110kw | 250kw/55kw |
| Max capacity | 500kg/h | 450kg/h | 800-1000kg/h |

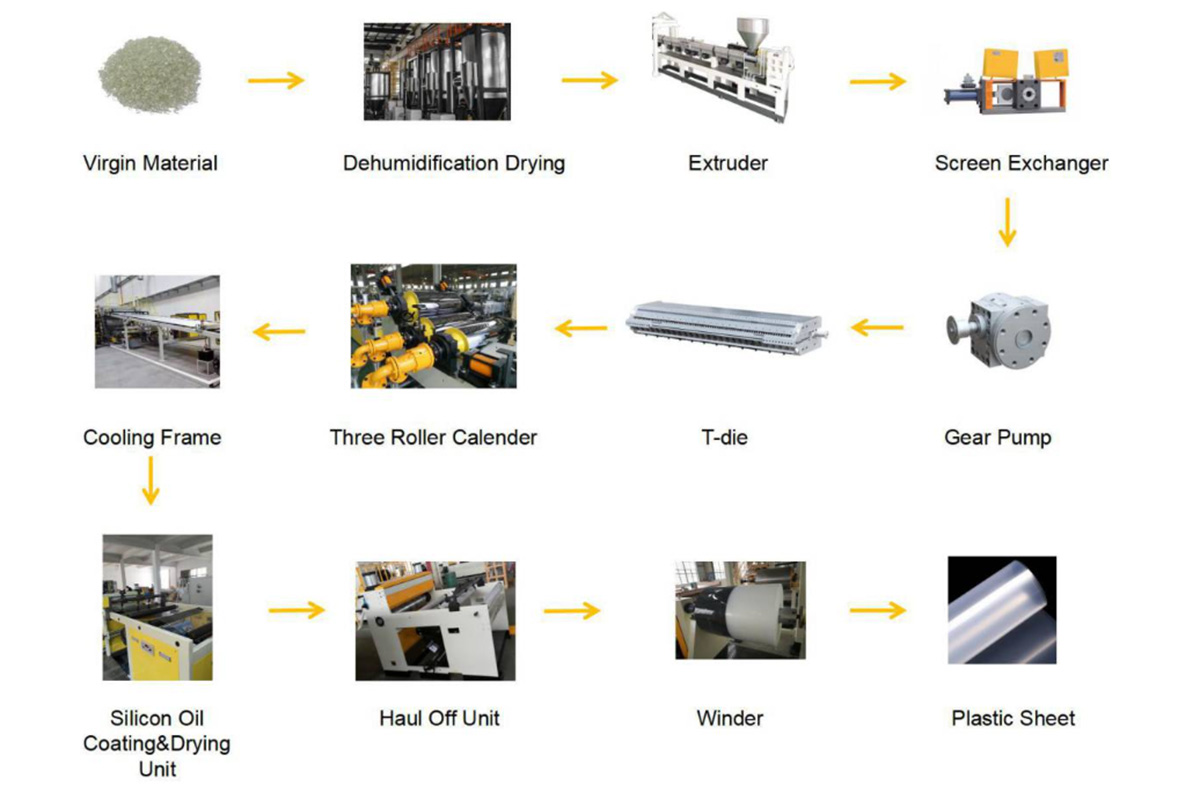

Process steps
Reviews
-
PC sunshine board
I've worked with JWELL for the past 8 years.They are my #1 vendor. They are consistently providing excellent service and perfect quality products...as well, they are really nice folks to work with, who go above and beyond on a daily basis, and when something "special" is needed, they are always willing to accommodate my request.
Wael El-Sayed
Turkey
-
HDPE thick plate extrusion line
Very professional and sensible with a willingness to meet the customers needs and requirements. Thanks JWELL, let's continue the great working relationship.Very efficient and fast . Recommended, thanks very much.
Salaheddine Benguiba
Algeria -
PP thick plate extrusion line
One of the most reliable and trustworthy Extrusion Machine Manufacturers in China.Excellent company that I have worked with for many years. I have never had an issue with any of my product and they have produced hundreds of thousands of feet for me. Highly recommend.
Savan
Vietnam
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
