100ltr Blow Molding Machine for Open-top Barrels
100ltr Blow Molding Machine for Open-top Barrels
100ltr Blow Molding Machine for Open-top Barrels

100ltr Blow Molding Machine for Open-top Barrels


Place of Origin:China
Brand Name:Jwell
Certification:ISO CE UL TUV
Competitive advantage:High quality, high capacity,high stability, worldwide after-sales service, more than 40 years developing experience


Add to Basket
Applications

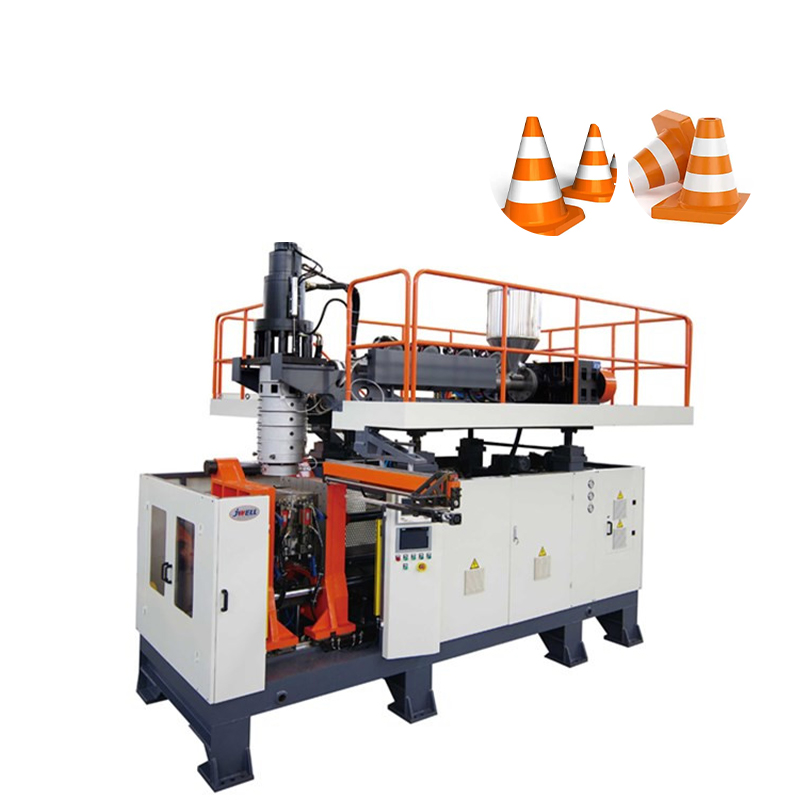

● Suitable for producing different kinds of road pyramid, logistic insulation barrels.
● Optional bottom sealing, product eject, core-pulling movement elements.
● Adopt high output extrusion system, accumulating die head.
● Optional Hydraulic Servo control system.

Description

JWZ-BM series blow-molding machine are suitable for large-scale production of milk-bottle, drink-bottle, water-bottle, hot–filling bottle, medical containers, container used for cosmetic, spices, pesticides, lubricants and computer suppliers, it is also applicable for making small plastic toys.

In order to improve the efficiency, short the time that used for bottle forming, we equip with post-cooling device, so the products have good quality. According to the requirement of the customer, we can equip with other downstream equipments, so that the line can convey the finished products and trim waste-margin automatically.

Specifications
ModelUnitBM100
Max product volumeL100
Dry cyclePc/h360
Die head structureAccumulating type
Main screw diametermm100
Max plasticizing capacity (PE)kg/h190
Driving motorKw55
Accumulating volumeL12.8
Oil pump motor power(Servo)Kw22
Clamping forceKN600
Space between platenmm500-1300
Platen size W*Hmm1020*1000
Max. mold sizemm800*1200
Heating power of die headKw30
Machine dimension L*W*Hm5.5*2.5*4.0
Machine weightT16
Total powerKw135

Note:Information listed above are for reference only, the production line can be designed by customer’s requirements.
