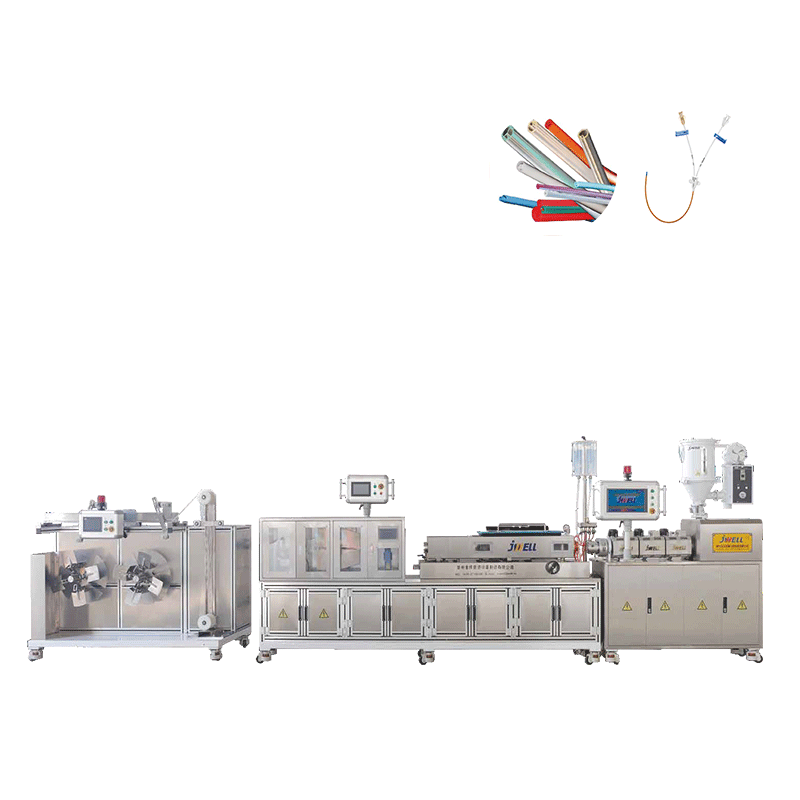

Center Vein Medical Pipe Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications
According to the special requirements of customer,HRJ developing and designing the precision medical extrusion line which is a new type equipment.
Description
The extruders adopt Siemens man-machine interface and Siemens computer-control operation system, maintenance-free motor (Germany) and decelerator direct driving, which can effectively avoid low efficiency and big transmission error of general belt transmission. Dust, grease dirt and noise produced during manufacturing process are also avoided.

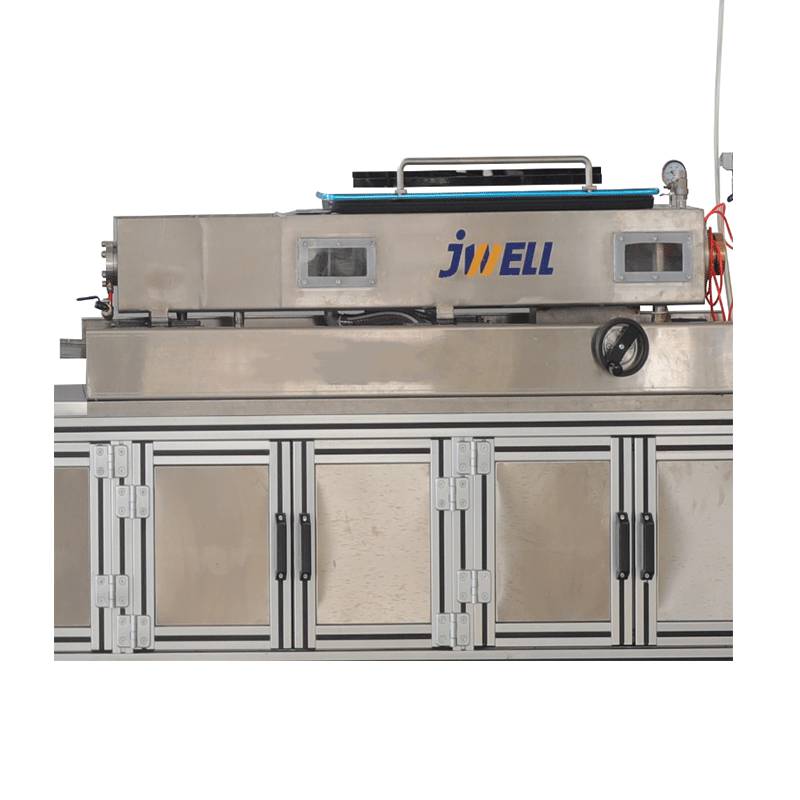

● The cooling bath is made of imported SUS304 stainless steel with complete glass closed structure and stainless steel centrifugal pump for special medical-grade deionized water. Its water-annulus and low vacuum moulding ensures fine roundness and precision of pipes. Its air-annulus drying device allows the cooling water to be used circularly and not to splash the ground.
● Biaxial diameter gauge adopts high velocity laser light source, Japan TOSHIBA high-precision CCD, digital image manipulation, non-contacting measuring for online products and real-time digital display with measuring precision of ±0.003mm.

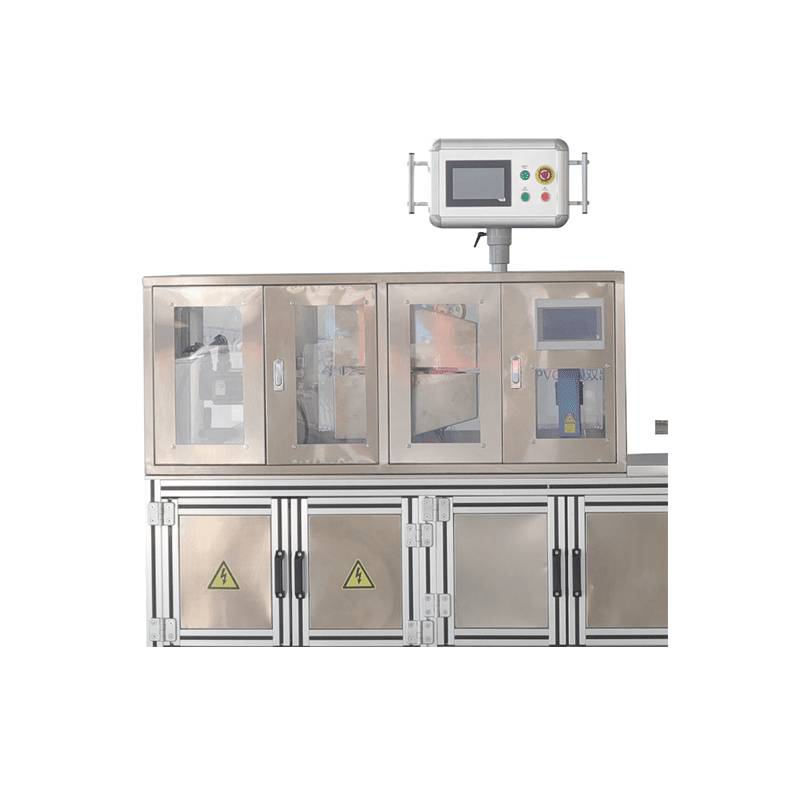

● The haul-off unit consists of belts made from Switzerland, servo motor and controller of Japan MITSUBISHI, turbing and worm decelerator from Germany. It can work with high precision and stability and no skidding or noise.
● The cutting unit is equipped with aluminum alloy rotatable Knife arm of low-inertia as well as special cutting Knife pouch which ensures smooth cuts. It is servo motor driving and PLC programming controlling of Japan MITSUBISHI, as well as Siemens man-machine interface
ensure precision of cutting length. Cutting length can be set at will and cutting times can be counted automatically.
● The extruder and the haul-off adopt complete closed loop serve motor which enables hauling speed to change with the extruder speed, and consequently ensure speed synchronization on the whole line with high precision and frequency responsibility. It can also prevent pipe diameter
from fluctuating when working speed is changed due to environmental factors, and thus ensures product precision up to ±0.03.
Specifications
| Equipment model | Screw diameter | L/D | Main Power | Capacity Kg/hr |
| JWS45 | 45mm | 28/1 | 7.5kw | 15～18 |
| JWS50 | 50mm | 28/1 | 11kw | 20～25 |
| JWS65 | 65mm | 28/1 | 18.5kw | 30～40 |

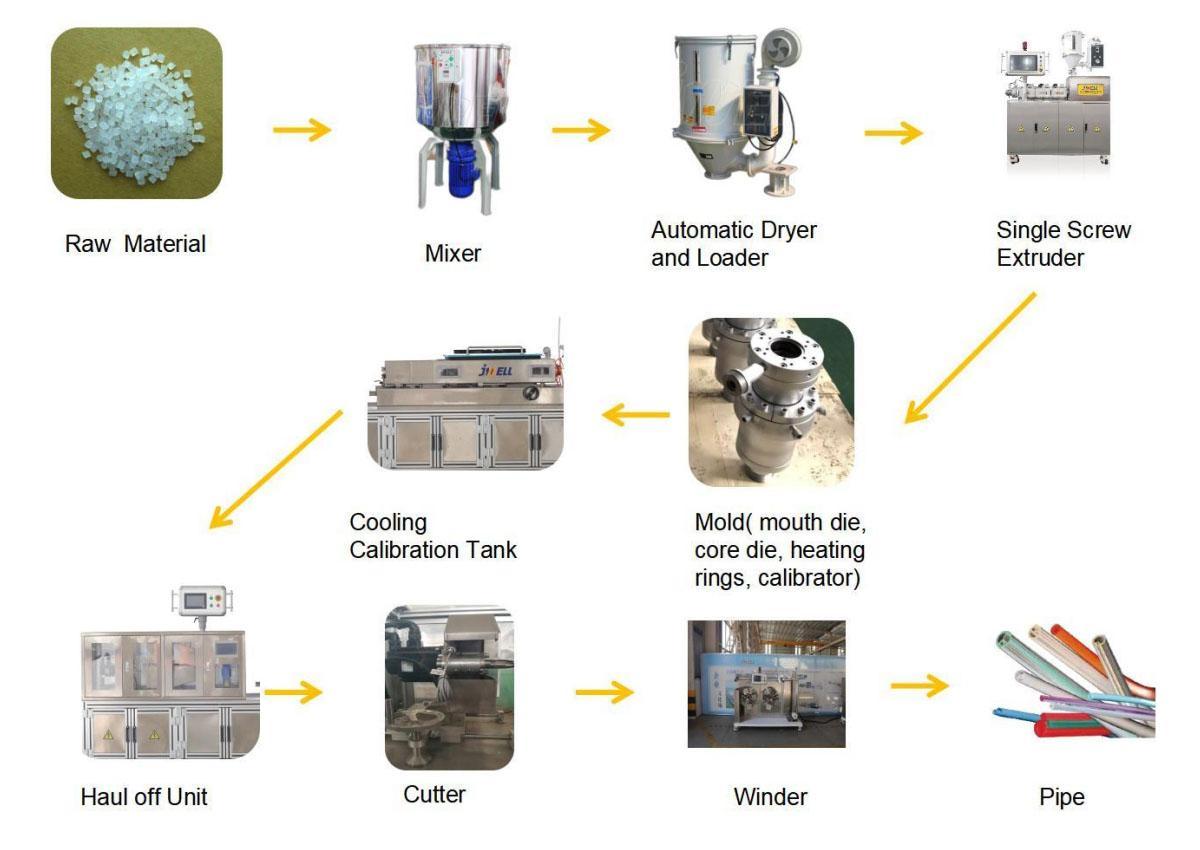

Process steps
Reviews
-
Good quality,good cooperation.
Good quality,good cooperation.It is a very pleasant experience with Jwell.All people are very kind and responsible.Kevi Zhou is so amazing through out my whole process and was great with communication.Hope we can have a long cooperation.
Mohanmoud
Egypt
-
A most trustworthy company i have ever met!
A most trustworthy company i have ever met!We have connected for a long time for our process.From big project to very small problem,jwell always is patient to help me.Thanks a lot for Jwell the effort.
Jace
Poland
-
This is not the first time i order Jwell's machine.
This is not the first time i order Jwell's machine.The machine is very good,simple operation,longlife usage.Since 2003,we met in plastic exhibition.It's a good experience for that time we got together to discuss the pipe machine.
Geoge
France
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
