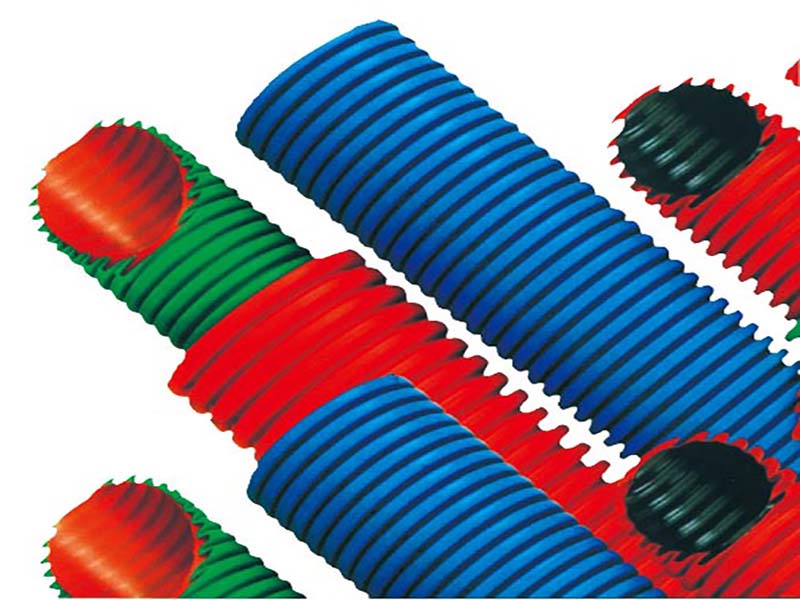

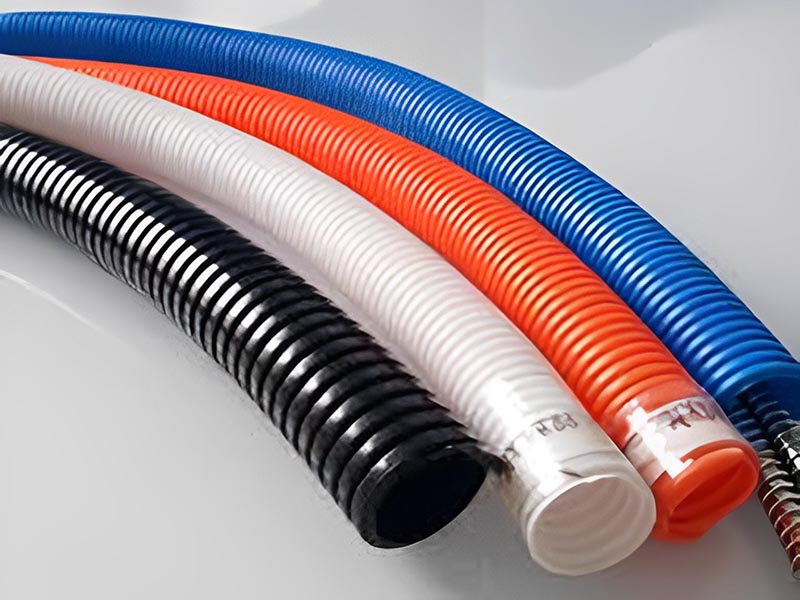

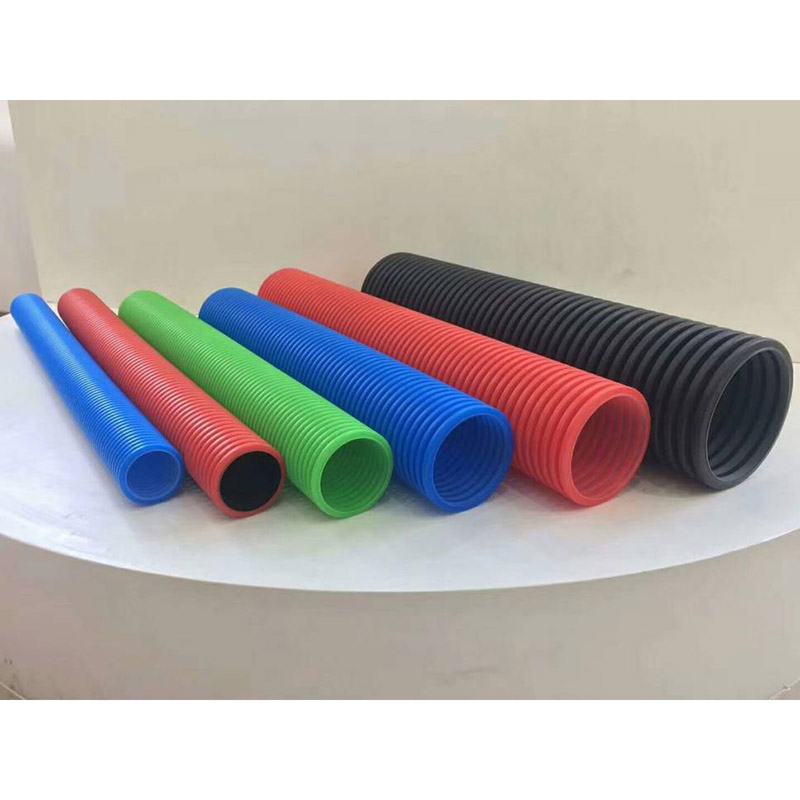

PA/PE/PP/PVC single wall, double-wall corrugated pipe extrusion line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications
It is widely used in highway, railway subgrade, subway project, waste landfill, tunnel, green belt, sports ground, slope protection caused by high water content and other drainage fields, as well as underground irrigation and drainage system of agriculture and horticulture.
Description

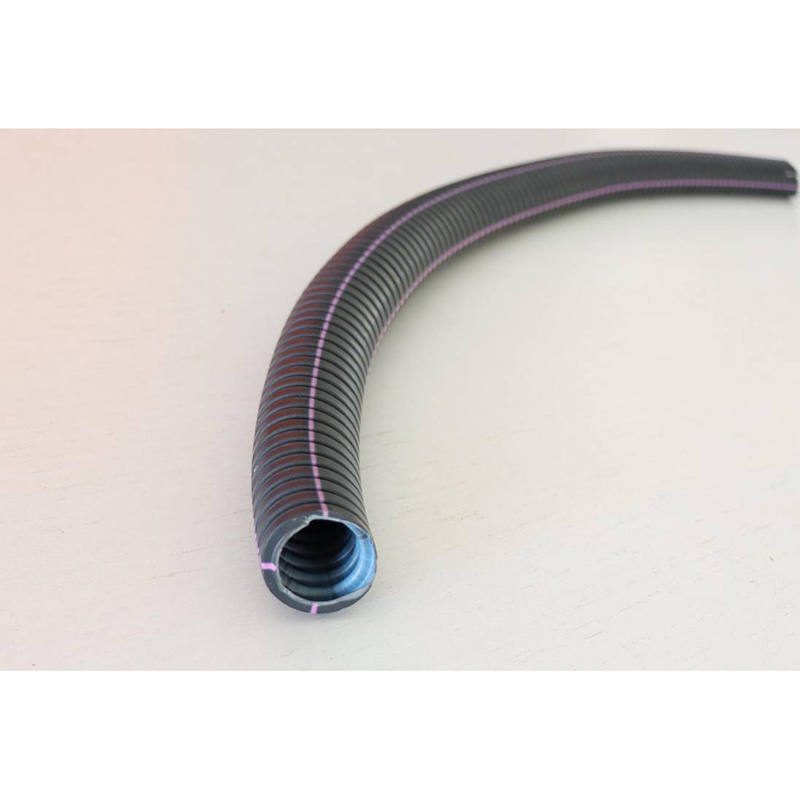

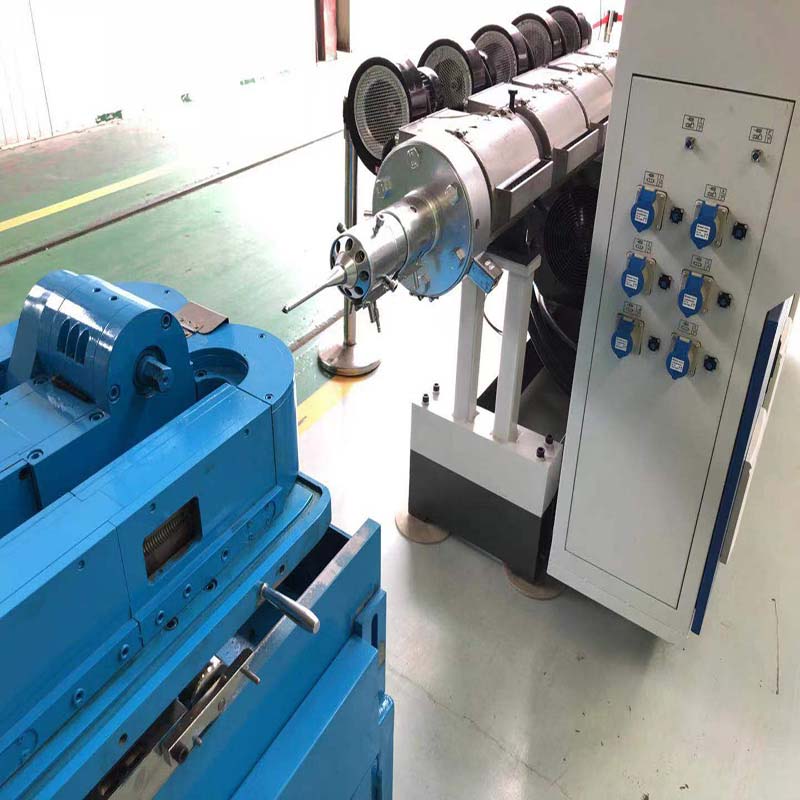

Mini single wall high speed bellows forming machines can produce double or triple diameters of single wall bellows with the same module, reducing module cost and improving production efficiency. It has reliable performance, stable speed regulation and wide speed adjustment range. The operation is simple and convenient, the appearance is exquisite and generous.
Specifications
| Type | JWDPG-25 | JWDPG-50 | JWDPG-63 | JWSB150 |
| Screw diameter(mm) | Φ45 | Φ65 | Φ65 | Φ75 |
| L/D | 30 : 1 | 33 : 1 | 33 : 1 | 33 : 1 |
| Total power(kW) | 50 | 70 | 70 | 100 |
| Pipe spec(mm) | Φ8-Φ20 | Φ12-Φ50 | Φ12-Φ63 | Φ90-Φ150 |
| Max. speed(m/min) | 25 | 15 | 10 | 5 |
