PPR and Glass Fiber Composite Pipe Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

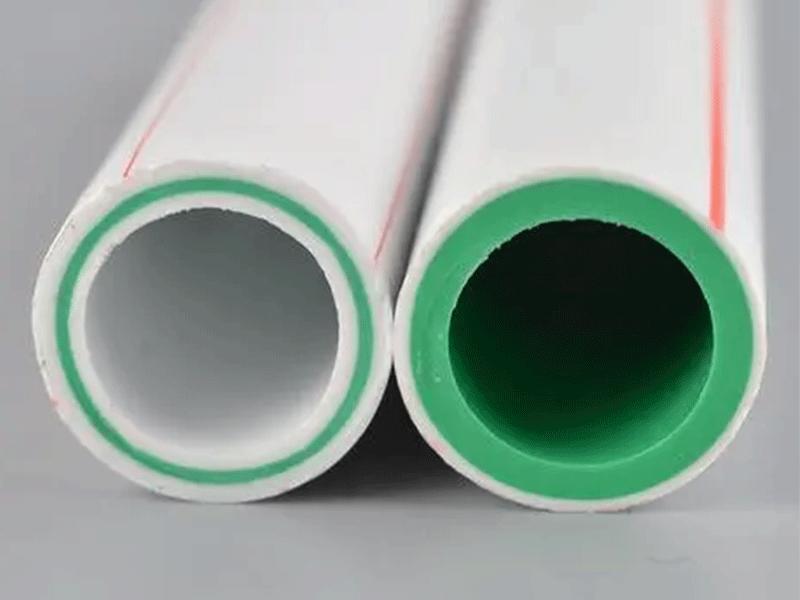

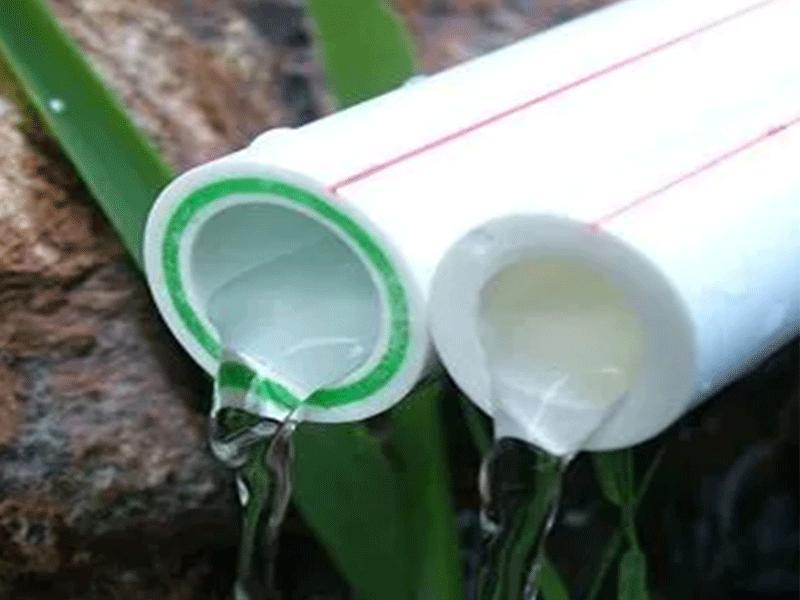

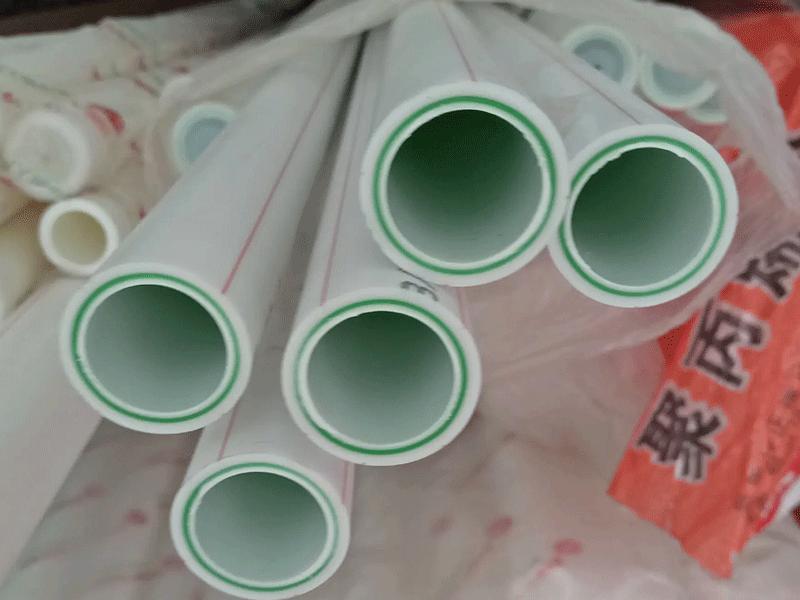

The PPR fiberglass reinforced pipe are mainly used for drinking water delivery，Hot and cold water transport. On the basis of maintaining the advantages of the original PP-R product, the product also has the following characteristics:
1. The linear expansion coefficient is only about 20~30% of the ordinary PP-R product; Completely solve the problem of plastic pipe expansion
2. The rigidity of the pipe is enhanced to prevent the sagging phenomenon of the pipe. At the same time, the density and number of fixed support points are reduced, so as to reduce the comprehensive cost of the project
3. Higher pressure class, longer service life under the usual design of tremor force
4. Better high temperature resistance, energy saving and consumption reduction effect; Fr/PP-R application in hot water system, normal use temperature can reach 95~100, not only improve the use of medium temperature, but also reduce the thickness of insulation material, its comprehensive cost is lower
5. Large water flow: under the same level of pressure, the wall thickness of FR/PP-R pipe increases the inner diameter of the pipe, thus increasing the water flow (increase by 20%).
Description

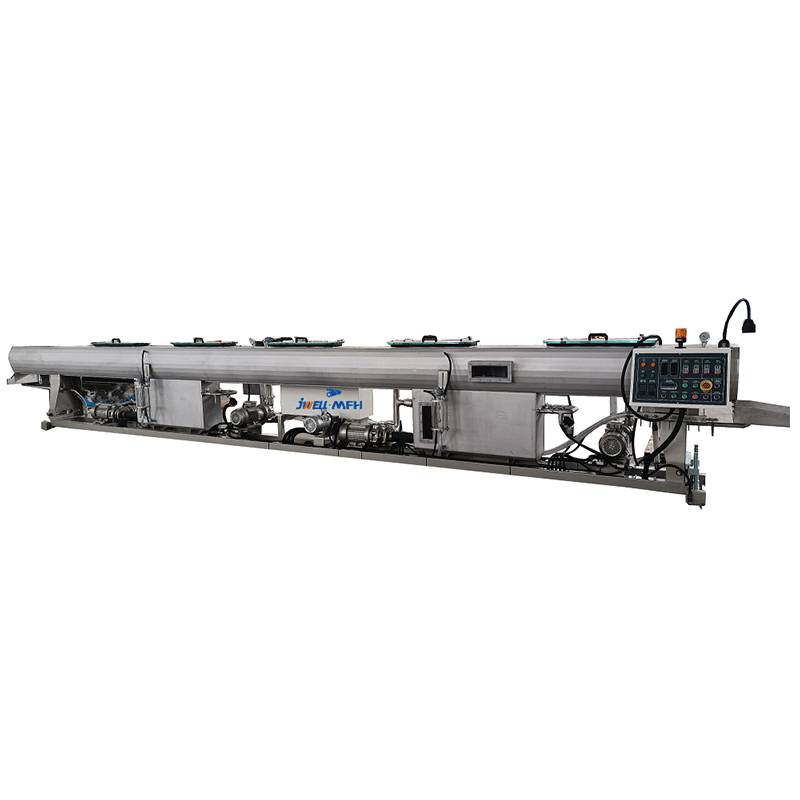

Glass fiber reinforced PP-R (FR/PP-R for short) pipe is a high performance pipe produced at low temperature and high speed by multi-layer co-extrusion through special technology and equipment developed by Jwell. It features of unique structure, advanced configuration, high degree of automation and easy operation. The extruder screw adopts BM high-efficiency type, high output, good plasticization, nice stability and reliability.
Video
Specifications
| Type | Diameter (mm) | Extruder | Max.Speed(m/min) | Max. output (kg/h) |
| JW-PPR63 | 20-63 | JW60/JW45 | 30 | 200-300 |
| JW-PPR63 | 20-63 | JW45X3 | 30 | 200-300 |
| JW-F110 | 20-110 | JW60/JW45 | 30 | 250-350 |
| JW-F110 | 20-110 | JW45X3 | 30 | 250-350 |
| JW-F160 | 50-160 | JW60/JW45 | 10 | 300-400 |
| JW-F160 | 50-160 | JW50X3 | 10 | 300-400 |
Process steps
Reviews
-
Good quality,good cooperation.
Good quality,good cooperation.It is a very pleasant experience with Jwell.All people are very kind and responsible.Kevi Zhou is so amazing through out my whole process and was great with communication.Hope we can have a long cooperation.
Mohanmoud
Egypt
-
A most trustworthy company i have ever met!
A most trustworthy company i have ever met!We have connected for a long time for our process.From big project to very small problem,jwell always is patient to help me.Thanks a lot for Jwell the effort.
Jace
Poland
-
This is not the first time i order Jwell's machine.
This is not the first time i order Jwell's machine.The machine is very good,simple operation,longlife usage.Since 2003,we met in plastic exhibition.It's a good experience for that time we got together to discuss the pipe machine.
Geoge
France
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
