HDPE/PP/PVC Horizontal Type Double Wall Corrugated Pipe Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

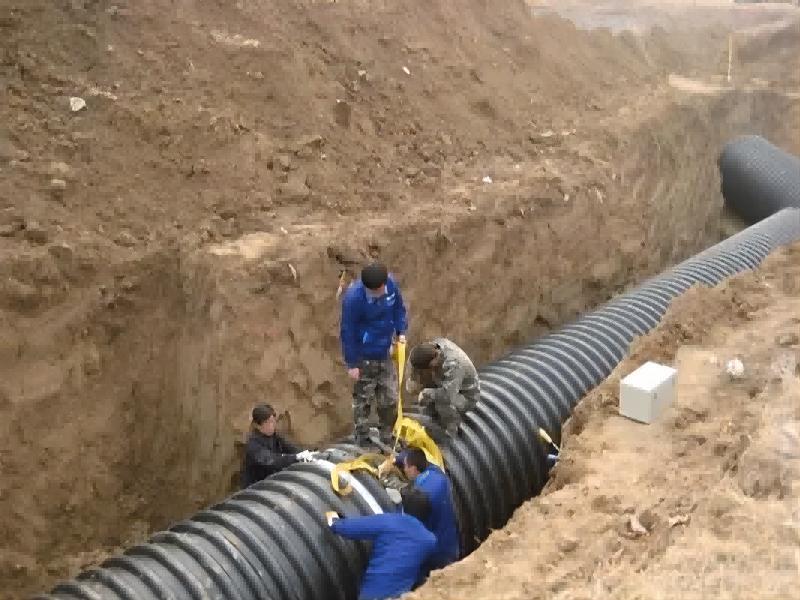

Mainly used in: urban drainage, sewage engineering, drainage engineering, farmland irrigation, sand control engineering, low-voltage water supply system, municipal drainage, sewage pipeline transformation, wire, cable buried jacket and other fields.
Description

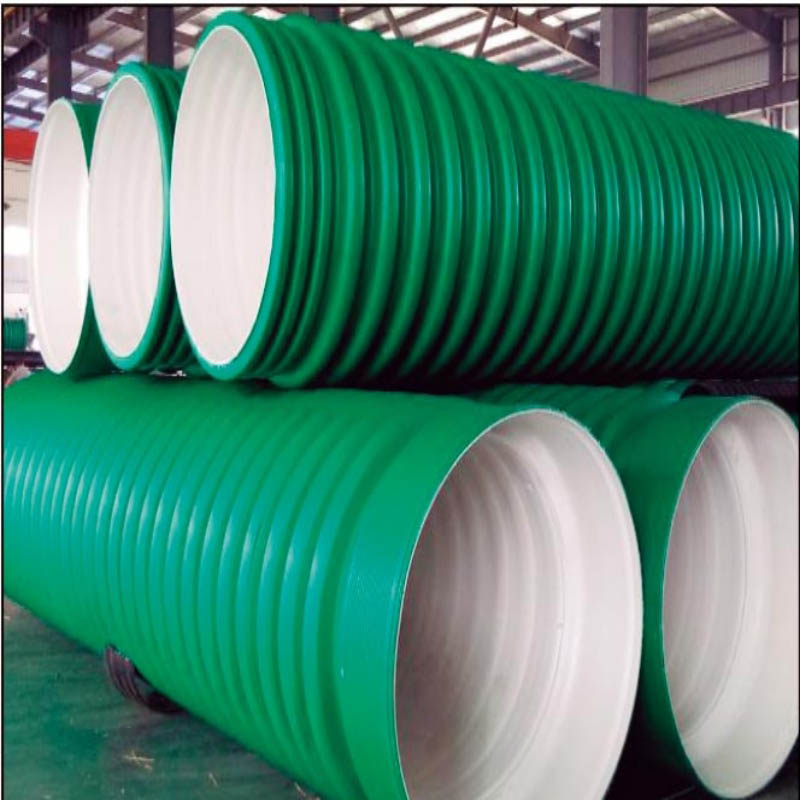

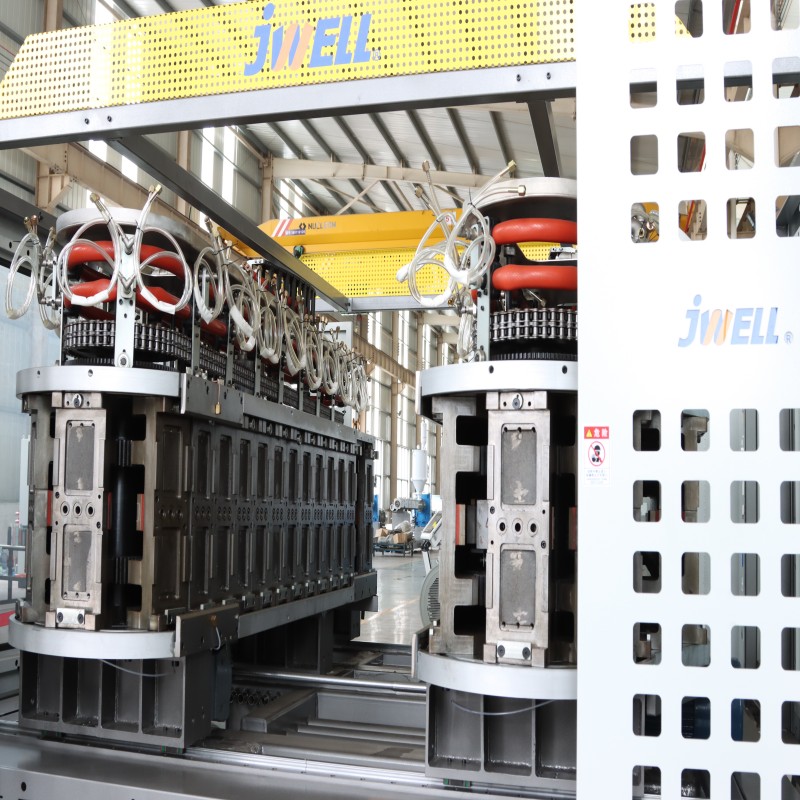

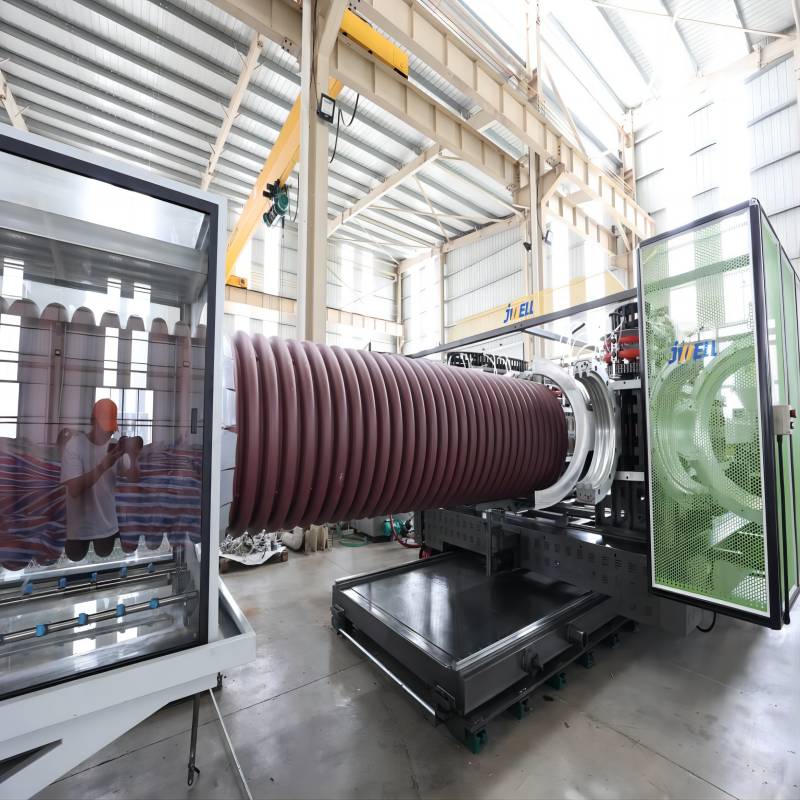

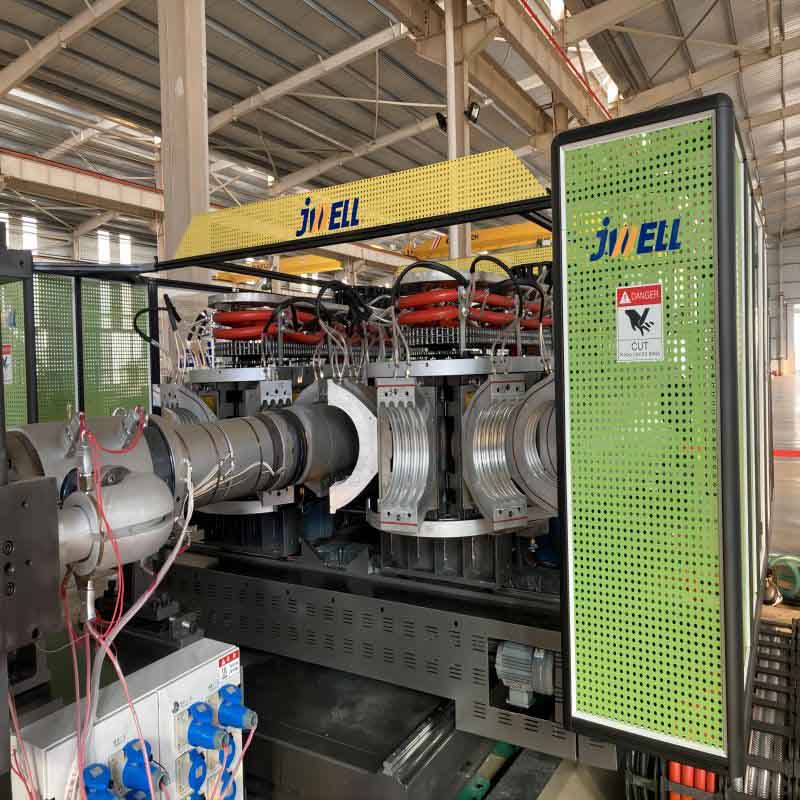

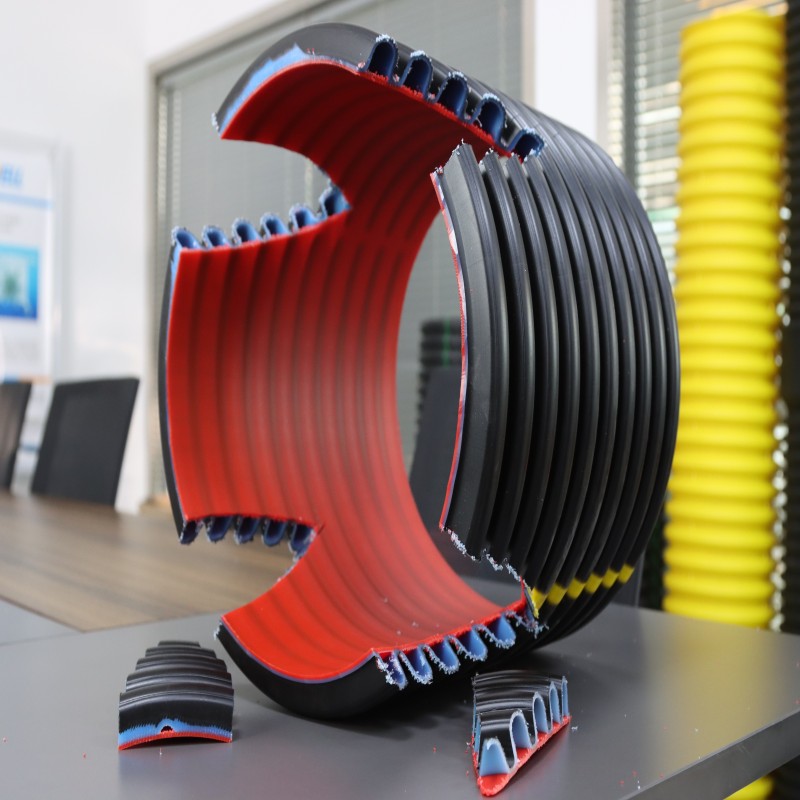

HDPE/PP/PVC double-wall corrugated pipes are widely used. The HDPE double-wall corrugated pipe production line developed by our company is equipped with many patented technologies. HDPE/PP adopts new high efficiency single screw extruder, PVC adopts large flat double or cone double extruder, with large extrusion capacity. The forming machine adopts horizontal structure, shuttle drive, sealed water-cooled structure, vacuum forming, and can realize online double-layer flaring. Whole line is controlled by PLC computer.
Specifications
| Type | Pipe diameter(mm) | Product line length & width(m) | Max speed(m/min) | Total power(Kw) |
| JWBW-150 | ID40-150 | 28x4.5 | 15 | 270 |
| JWBW-300 | ID100-300 | 30x6 | 7.5 | 340 |
| JWBW-600 | ID100-600 | 34x6 | 5.5 | 490 |
| JWBW-800 | ID200-800 | 38x8 | 4.2 | 615 |
| JWBW-1000 | ID300-1000 | 38x8.5 | 3.8 | 795 |
| JWBW-1200 | ID400-1200 | 38x9 | 2 | 890 |
| JWBW-1500 | ID600-1500 | 42x9.5 | 1.2 | 1110 |
Process steps
Shipment
