Single Screw Endotrscheal Tube and Infusion Tube Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

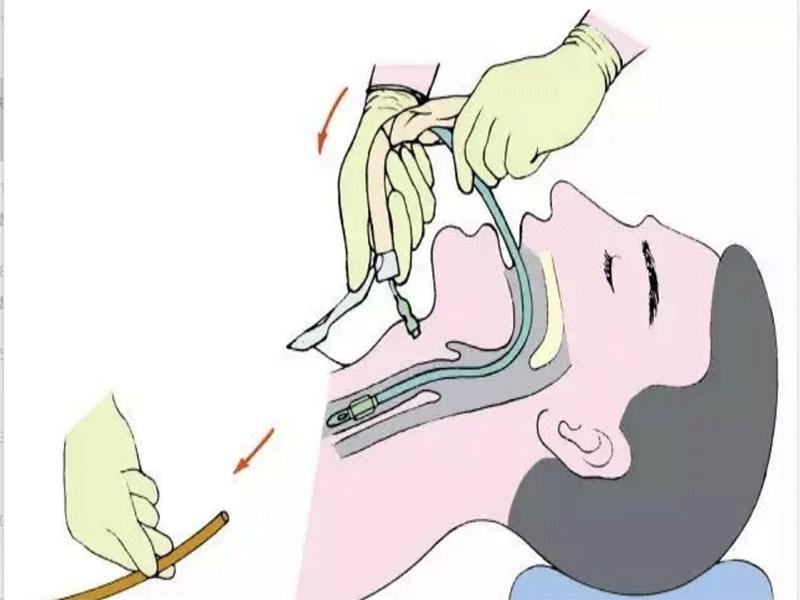

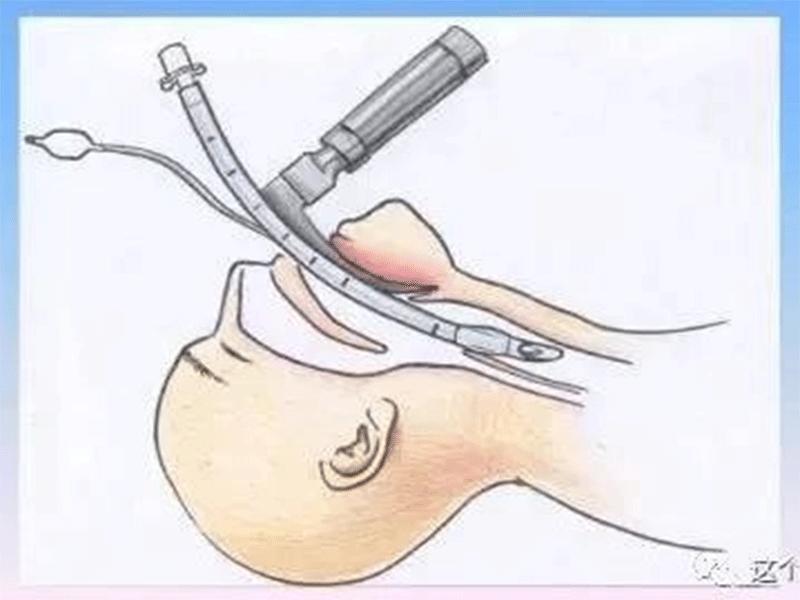

It is mainly used in various medical hoses such as respiratory catheters, oxygen intubations, infusion tubes, etc.
Description

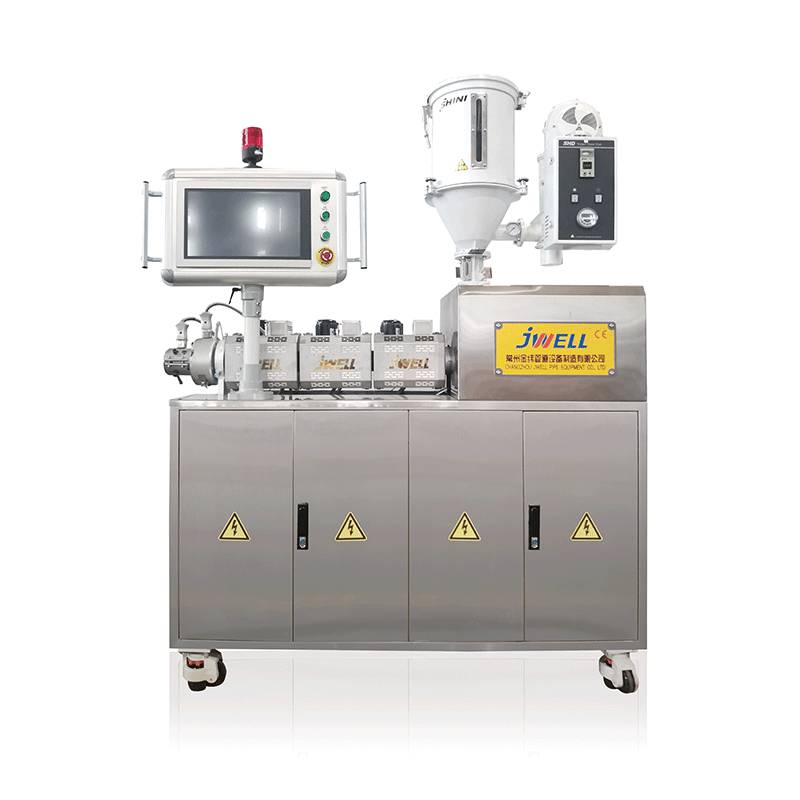

This series of equipment consists of single screw extrusion main machine, extrusion die, vacuum forming cooling tank, belt
haul-off unit and servo cutter. Equipment and product contact surface can be made of stainless steel(SUS316)or custom
designed to match customer's requirements.
● Applicable materials: PVC, TPU and other materials for medical application.

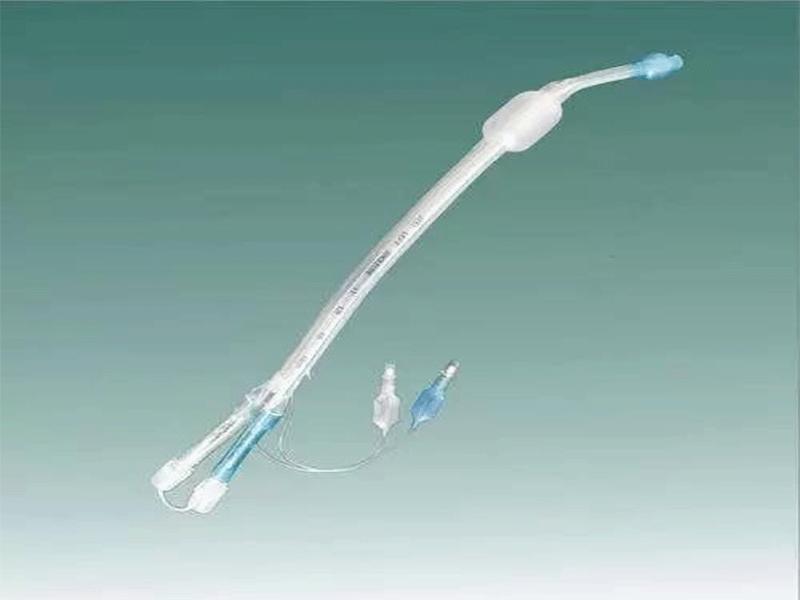

● Applicable tubes: Nasal oxygen cannula, tracheal intubation, infusion tube, elastomeric infusion tube, double-cavity,
multi-cavity and single row tube, etc.
● Applicable tube diameter and margin of tolerance:
Outside diameter: 1.5- -20mm
Dimensional tolerance of outside diameter: +/-0.01, +/-0.02, +/-0.05mm
Wall thickness: 0.1-3.0mm
Specifications
| Equipment model | Screw diameter and L/D | Power consumption KW/hr | Capacity Kg/hr | Machine size(L/W/H,in MM) |
| JWS25 | 25*25D | 2 | 2～5 | L7500*W2000*H1780 |
| JWS45 | 45*28D | 7 | 15～40 | L9500*W2500*H1780 |
| JWS55 | 55*28D（30D） | 8 | 20～55 | L10500*W2500*H1780 |
| JWS 65 | 65*28D（30D） | 11 | 40～90 | L12600*W3000*H1780 |

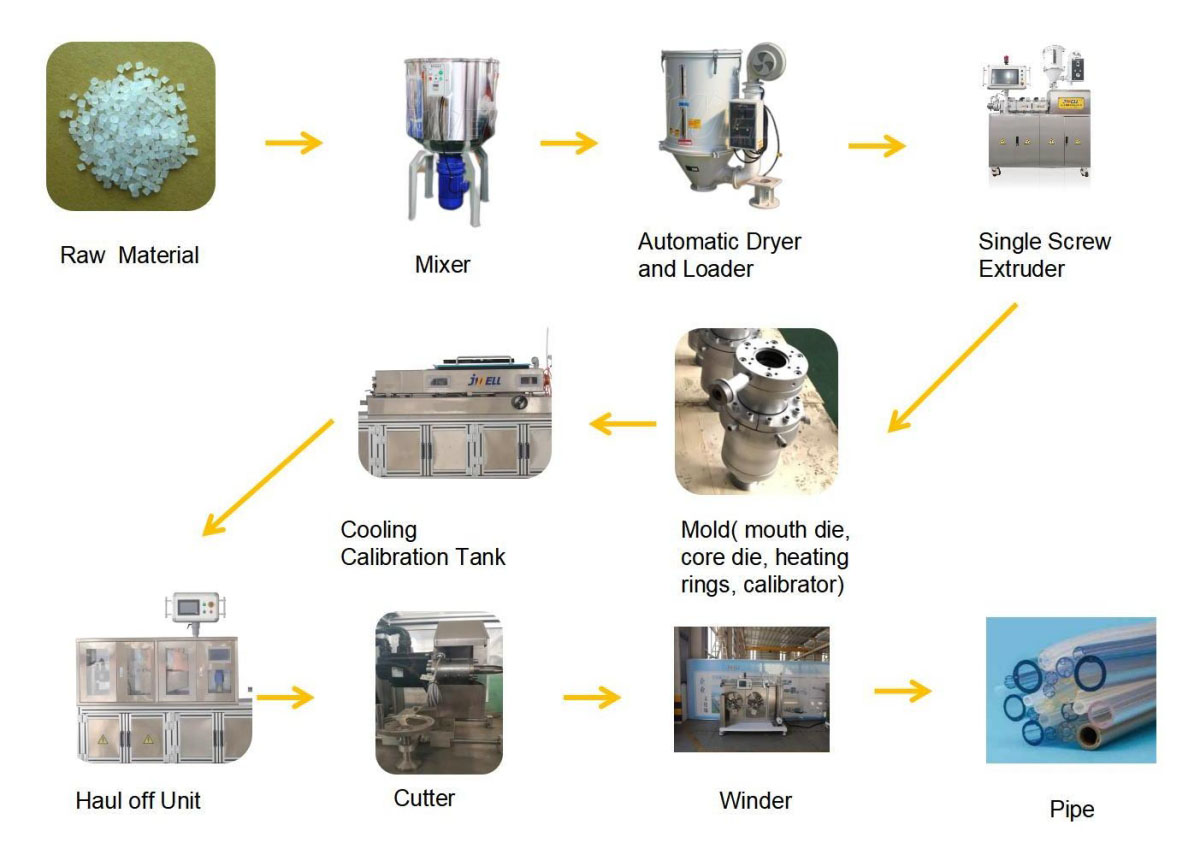

Process steps
