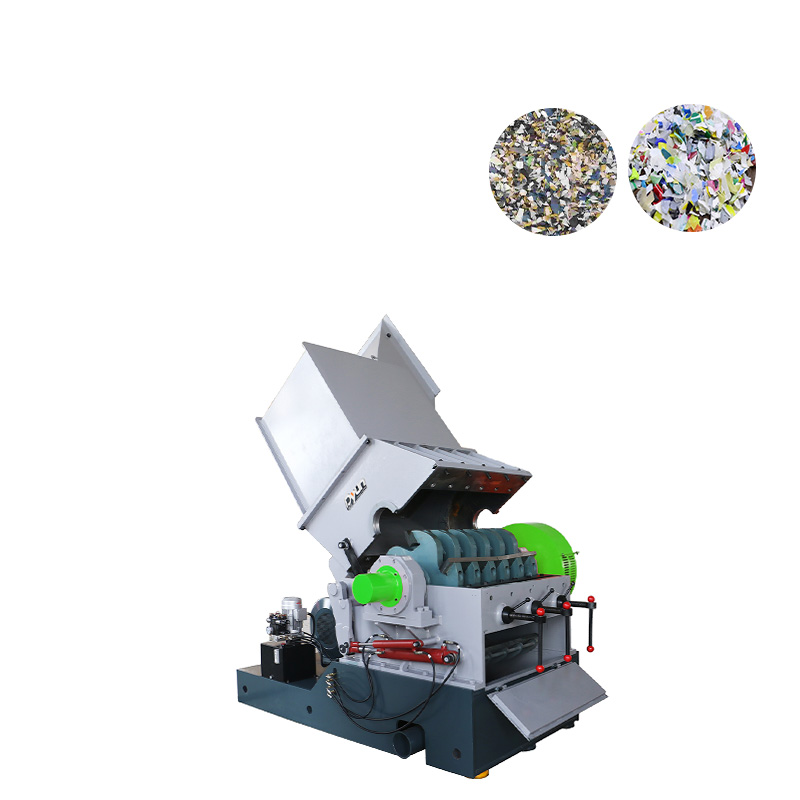

Jwell Dyps-G Series Strong Crusher Recycling Machine
| Place of Origin: | China |
| Brand Name: | Dyun |
| Certification: | ISO CE |
| Minimum Order Quantity: | 1 |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
Applications
Crushing of various pipes, profiles, films, sheets and large solid materials.
Description
This series heavy pipe crusher does not require shredding for medium-diameter pipes, and can be directly crushed and recycled in one step.
The specially designed pipe feeding hopper of this series of models enters the pipe and forms a specific angle with the crusher rotor to achieve the best crushing effect. The crushing length of pipes and profiles can reach 6 meters.

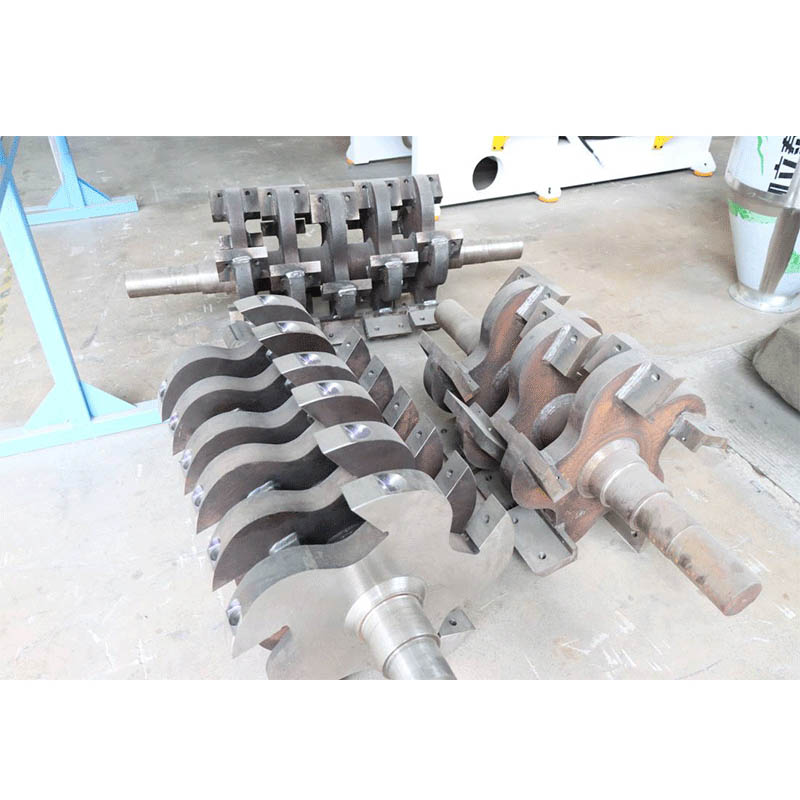

It also has large rotor bearings, tool racks and rotors. The standard V-shaped cutting technology is conducive to improve the cutting recovery efficiency andreduce the dust content in the recycled material.
For materials with higher strength and larger volume, the impact force can be reduced, and at the same time.It also avoids the possibility of the spindle moving tool being blocked by the material.Special steel and strong welding technology ensure product quality.
Power is in the range of 22-160KW,the output is between 450-1200kg/h.
Specifications
| Model | Feed Mouth Size(MM) | Main Motor Power(KW) | Moving Knife Quantity (PIS) | Fixed Knife Quantity(PIS) | Rotor Diameter(MM) | Out Put (KG/H) |
| DYPS-G 700 | 310*300 | 22-37 | 6 | 4 | Ф500 | 450 |
| DYPS-G 800 | 360*350 | 55-75 | 6/10 | 6 | Ф600 | 650 |
| DYPS-G 1000 | 510*500 | 75-110 | 10/14 | 6 | Ф700 | 850 |
| DYPS-G 1200 | 650*650 | 110-160 | 14/18 | 6 | Ф800 | 1200 |
Competitive Advantage
Long Service Life, sustainable, competitive price
Process steps
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
