Jwell Four-shaft Recycling Shredder Machine
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications
This series of shredder is specially suitable for shredding large-size plastic materials, applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc.
Description

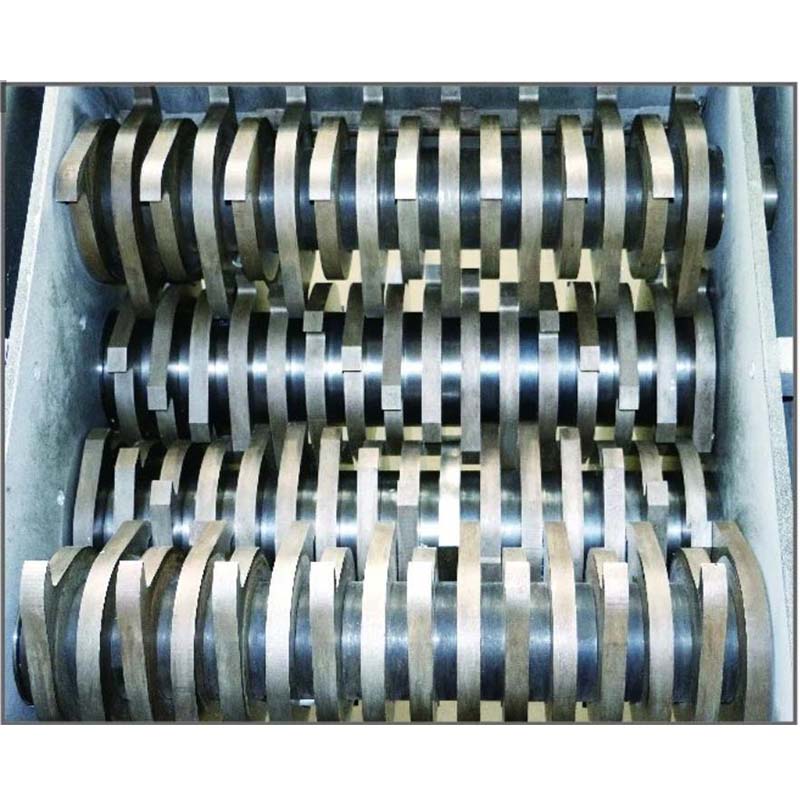

The series shredder has the characteristics of multi-function and strong versatility. This series of shredders adopts a standardized and modular design and has the advantage of good interchangeability of parts. The auxiliary knife is made of die forging and the main knife is made of special alloy steel through a special process, which has good wear resistance and high strength. The shredder transmission adopts intermediate gear transmission to form a differential speed relationship.
Specifications
| MODEL | Main BladeDia(mm) | Drive Power(kw) | Rotor Blade(pcs) | Blade Thickness(mm) | Crushing Chamber Size Max(mm) |
| DYFSS-9080 | Ф25 | 18. 5*2 | 32 | Ø290 | 900×800 |
| DYFSS-100120 | Ф40 | 22*2 | 31 | Ø320 | 1000×1200 |
| DYFSS-130140 | Ф50 | 15*2+30*2 | 28 | Ø430 | 1300×1400 |
Process steps
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
