PLA Sheet Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Model Number: | CJWH75/40-1000 |
| Certification: | UL CE TUV ISO SGS |
| Minimum Order Quantity: | 1 |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
Applications

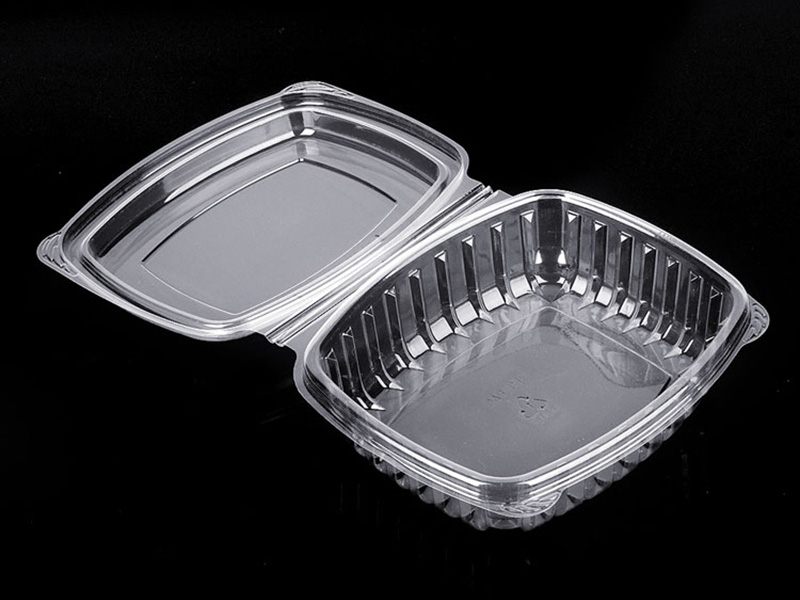

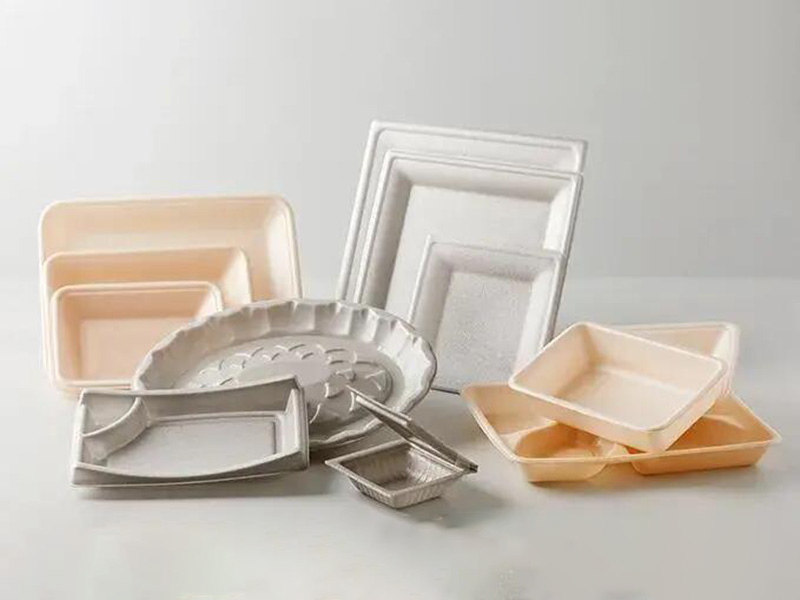

PLA sheet extrusion line is suitable for PLA(PLA) and modified PLA production. PLA(PLA) is derived from plant resources and can be directly used for extrusion molding PLA and solubilization PLA is widely used in various food packaging hardware packaging due to its biodegradable, compostable and recyclable characteristics.
Description
Jwell mechanical PLA sheet extrusion line is suitable for the PLA (polylactic acid) and modified PLA production, PLA (polylactic acid) derived from plant resources can be directly used for extrusion molding PLA and solution and PLA because of its biodegradability, compostable recycled etc are widely used in various food packaging with the melt metal packaging quantitative extrusion, metering pump speed and pressure closed loop control System, so that the sheet thickness uniform. Roller drive independently, each roller linear speed synchronous control. The whole machine adopts PLC control, the actual parameter setting, data operation and feedback, alarm and other functions of automation.
Specifications
| Species | Multi layer | Multi layer | Multi layer | Multi layer | Multi layer |
| Extruder specification | CJWH75/40-1000 | CJWH85/40-1000 | JWS120-1000 | JWS130-1000 | JWS150-1200 |
| Product thickness(mm) | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 |
| Main motor power | 132 | 160 | 132 | 160 | 220 |
| Max capacity(kg/h) | 450 | 550 | 500 | 600 | 800 |
Note: The specifications are subject to change without prior notice.

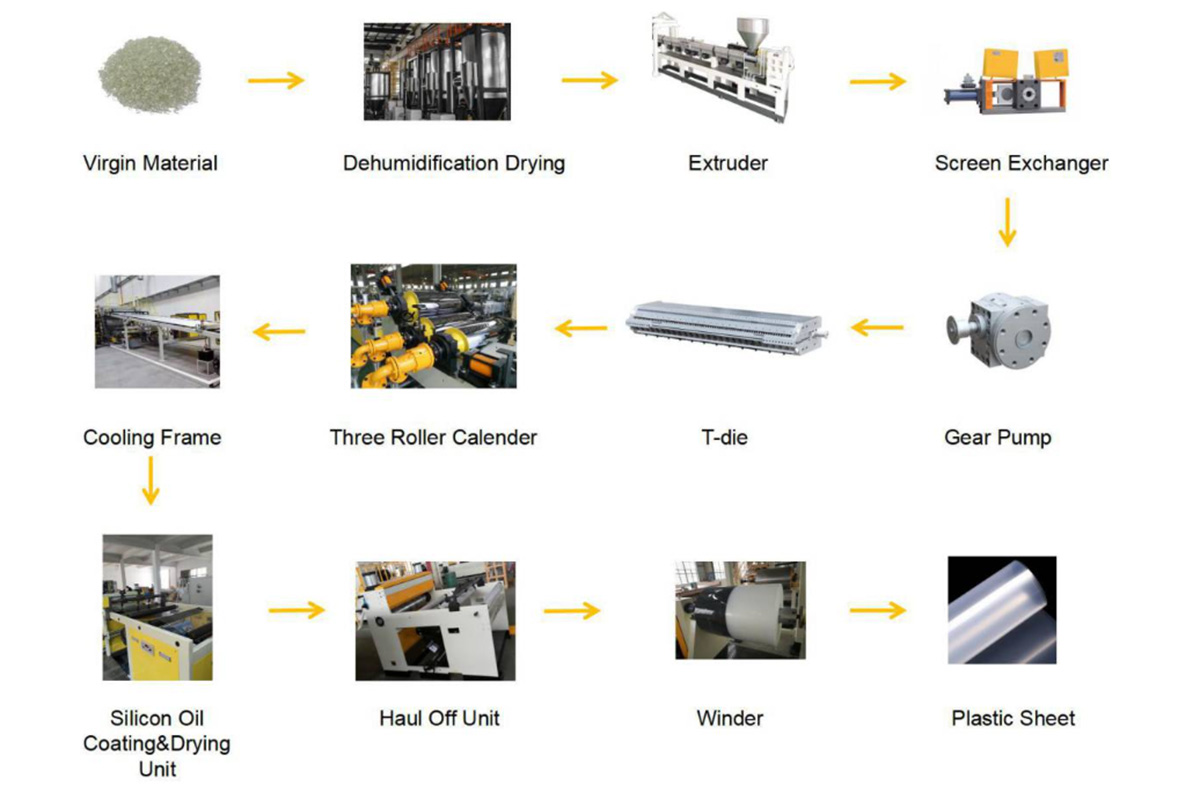

Process steps
Reviews
-
PET Sheet Extrusion Line
WELL have been a great partner for us throughout the years. Our experience has included great customer experience, timely responses, fair pricing, and quick turn around. I value the business they provide and would recommend them any day.
Mohamed Abo HalimaTurkey
-
PC sunshine board
I've worked with JWELL for the past 8 years.They are my #1 vendor. They are consistently providing excellent service and perfect quality products...as well, they are really nice folks to work with, who go above and beyond on a daily basis, and when something "special" is needed, they are always willing to accommodate my request.
Wael El-Sayed
Turkey
-
HDPE thick plate extrusion line
Very professional and sensible with a willingness to meet the customers needs and requirements. Thanks JWELL, let's continue the great working relationship.Very efficient and fast . Recommended, thanks very much.
Salaheddine Benguiba
Algeria
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
