PE Heat Insulation Pipe Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE |
| Minimum Order Quantity: | 1 |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
Applications

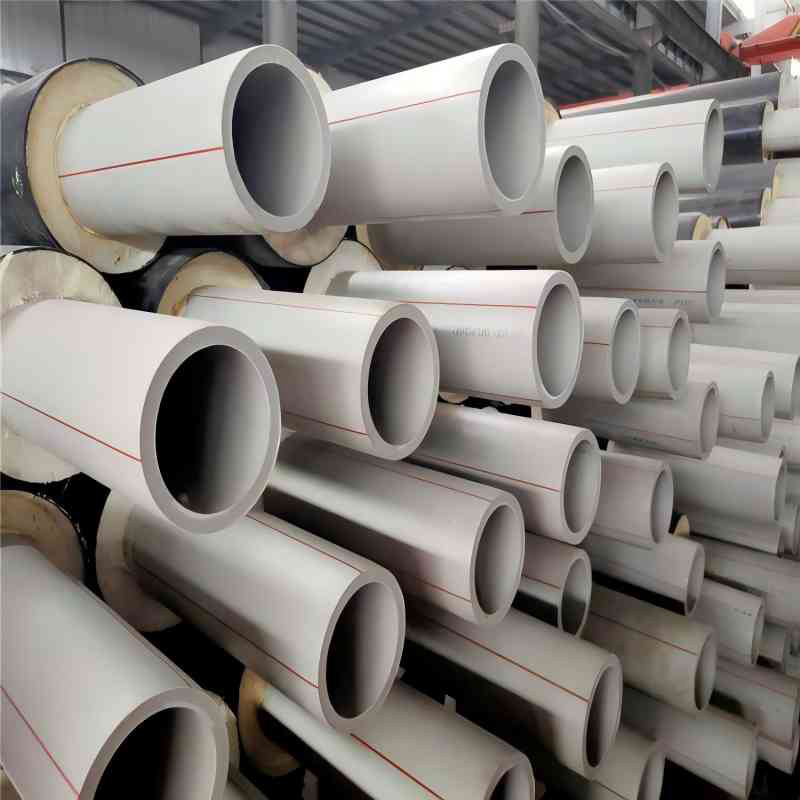

PE insulation pipe production line is mainly used for the production of large diameter PE insulation pipe, also can produce water supply pipe, drainage pipe and so on. The pipe is non-toxic, tasteless, non-corrosive, anti-aging, good weather resistance and many other characteristics, the product is mainly used in the outer layer of heating pipes.
Description

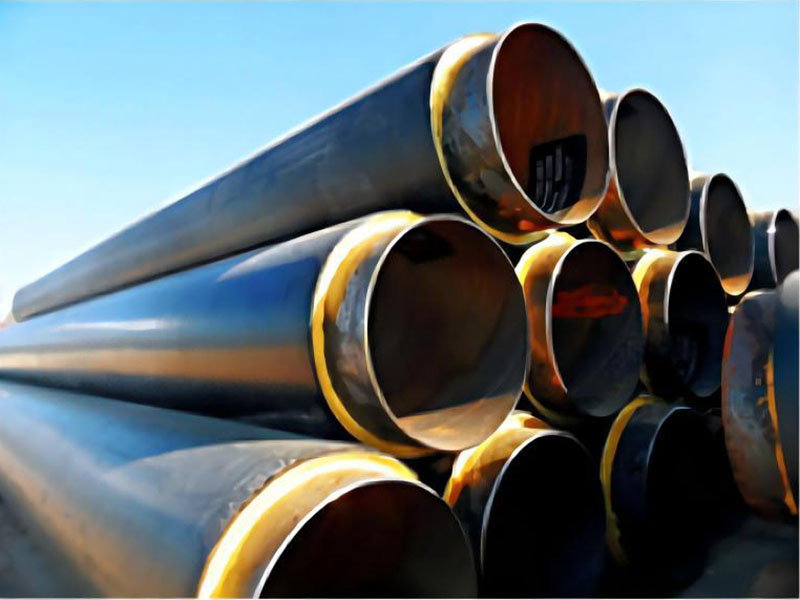

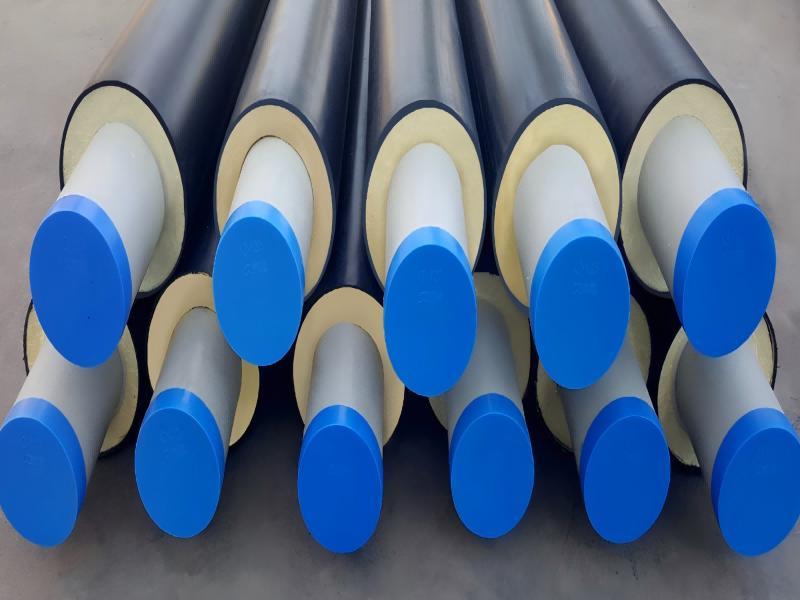

PE insulation pipe is also known as PE outer protection pipe,jacket pipe, sleeve pipe. The outer protective layer of the directly buried polyurethane insulation pipe is HDPE insulation pipe, and the middle is filled with polyurethane rigid foam as the insulation material layer, and the inner layer is steel pipe. Polyurethane directly buried thermal insulation pipe has good mechanical properties and thermal insulation properties with good impact resistance. Under normal circumstances can withstand the high temperature of 120-180°C, suitable for all kinds of cold and hot water high and low temperature pipeline insulation engineering. It is usually used in indoor and outdoor pipelines, central heating pipes, central air conditioning pipes, chemical and pharmaceutical industrial pipelines of insulation, cold engineering, oil pipeline engineering, etc. Insulation pipe production line adopts special PE insulation pipe mold design, extrusion pressure is stable, thin wall pipe thickness uniform. The extrusion speed is fast, the blow molding output is greatly improved, the surface is brighter, and the operation is highly automatic.
Specifications
| Model | Pipe Spec(mm) | Extruder | L*W*H(m) | Total power(KW) | Price |
| JWGB630 | Ф200-ф630 | JWS-75/38 | 30*3*4 | 290 | 20. 5 |
| JWS-90/38 | |||||
| JWGB1000 | Ф315-ф960 | JWS-90/38 | 34*3*4 | 342 | 35. 8 |
| JWS-90/33 | |||||
| JWGB1400 | Ф760-ф1380 | JWS-120/38 | 40*3. 5*4. 3 | 472 | 39. 8 |
| JWS-120/33 | |||||
| JWGB1700 | Ф1054-ф1680 | JWS-120/38 | 40*3. 5*4. 3 | 512 | 42. 3 |
| JWS-150/33 | |||||
| JWGB2000 | Ф1054-ф1960 | JWS-120/38 | 49*4. 5*5 | 670 | 45. 6 |
| JWS-150/33 |
Process steps
Reviews
-
Good quality,good cooperation.
Good quality,good cooperation.It is a very pleasant experience with Jwell.All people are very kind and responsible.Kevi Zhou is so amazing through out my whole process and was great with communication.Hope we can have a long cooperation.
Mohanmoud
Egypt
-
This is not the first time i order Jwell's machine.
This is not the first time i order Jwell's machine.The machine is very good,simple operation,longlife usage.Since 2003,we met in plastic exhibition.It's a good experience for that time we got together to discuss the pipe machine.
Geoge
France -
Very good machine!
Very good machine! Jwell is famous all over the world. I believe the company who always have good fame.I heard Jwell from my friend and he says he like jwell people. That is why i decided to buy machine from Jwell, i believe my best friend and i also believe Jwell .
Souge
Cote d'ivoire
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
