Three Layers (Two Layers) of Medical Light-proof Infusion Tube Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

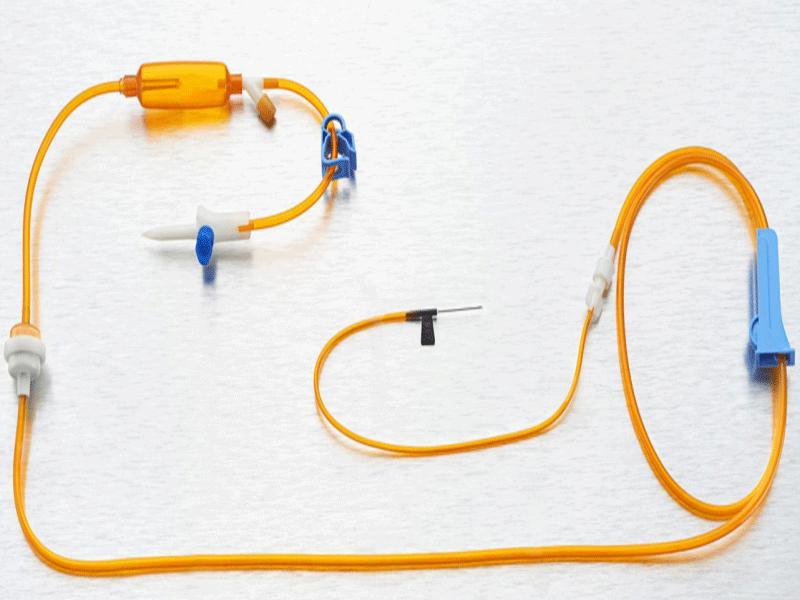

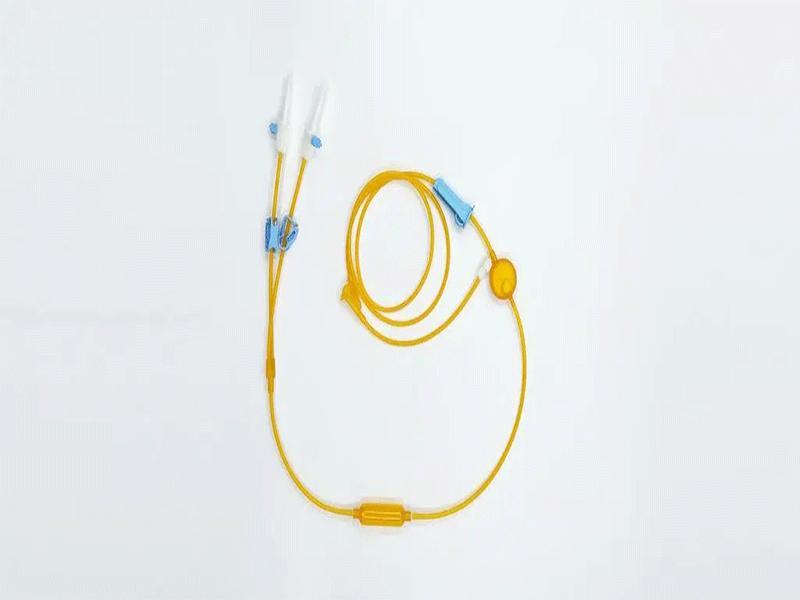

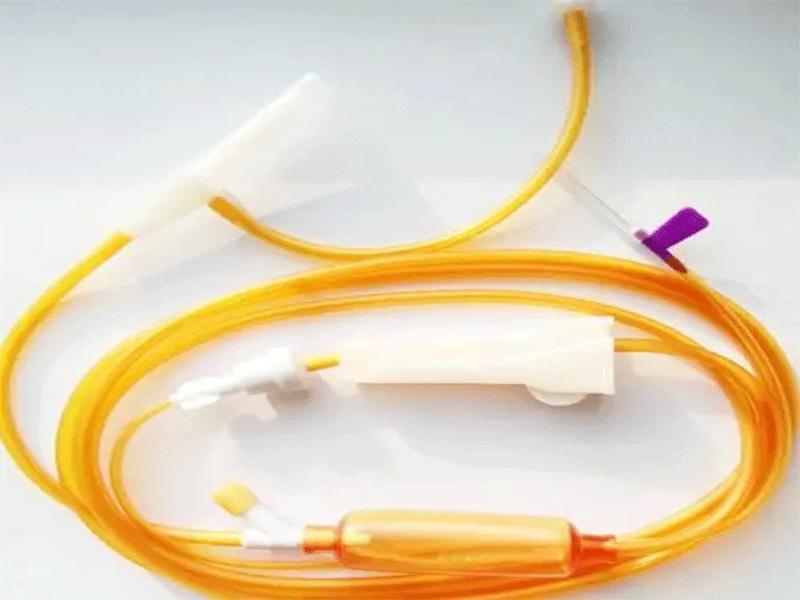

Medical light-proof infusion tube is a device used for infusion, care and protection. It has the characteristics of good light-proof performance, safety and reliability, convenient use and high-quality materials. It consists of infusion tubes, infusion sets, drip speed regulators, connectors, etc. It can be divided into single-channel and multi-channel types according to different needs. These characteristics and components make light-proof infusion lines play an important role in the infusion treatment process in medical institutions.
Description

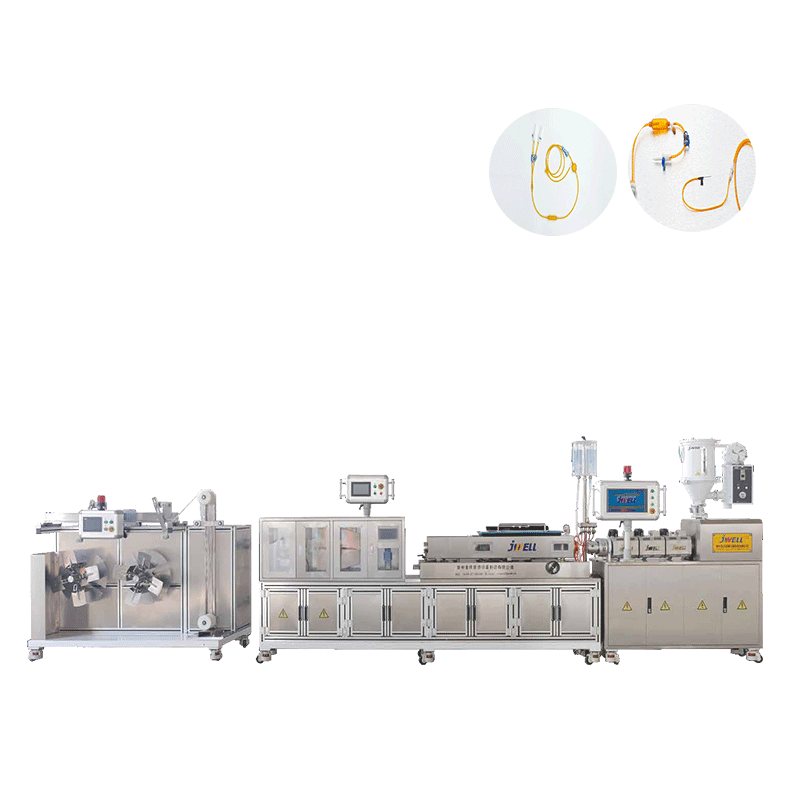

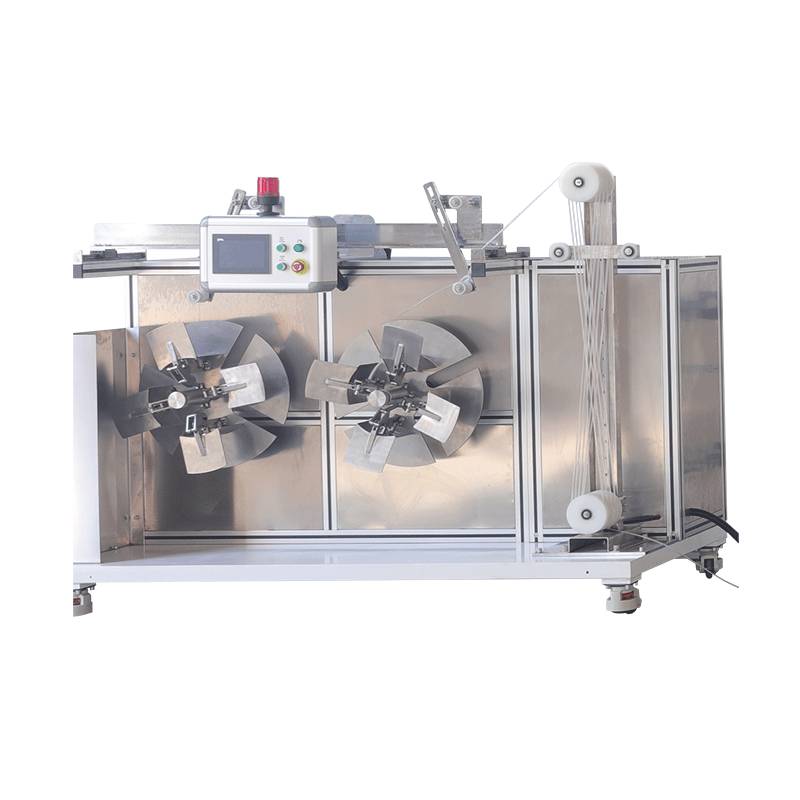

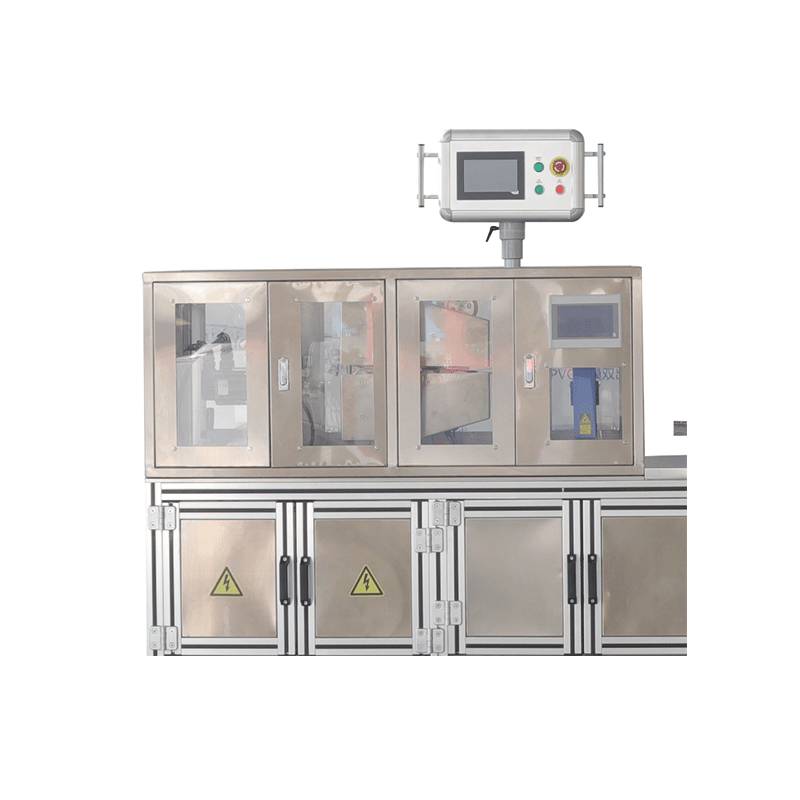

This series of equipment adopts two machines co extrusion structure based on characteristics of light- proof tube, which consists of three layers or two layers of coextrusion dedicated die, vacuum forming cooling tank, servo haul off and cutting machine and belt conveyor. Customer can choose online track outside diameter gauge. High efficient plastification and precise control of die and flow enable lightproof tube to bond well.This equipment with replacement of special mold can suitable for OD20 double-layer coextrusion flat mouth dripping bucket(inner layer thickness is 0.2mm ~ 0.25mm, the outer layer thickness is 0. 65mm ~ 0.7 mm), Avoid adjustment mold structure, inner and outer layer uniform distribution, mold flowing channel with no dead Angle, quick and convenient dismantle, improve production efficiency.
● Applicable tube diameter: OD1.5-0D20mm
● Applicable materials: PVC compounds, PVC light- -proof compounds and TPU compounds for medical application.
Specifications
| Equipment model | Screw diameter and L/D | consumption KW/hr | Capacity Kg/hr | Machine size(L/W/H,in MM) |
| JWS45+30 | 45*28D 25*25D | 9 | 15～45 | L9500*W2500*H1780 |
| JWS50+30 | 50*28D 30*28D | 10 | 20～55 | L13000*W2500*H1780 |
| JWS55+30 | 55*28D 30*28D | 12 | 20～65 | L13500*W2500*H1780 |

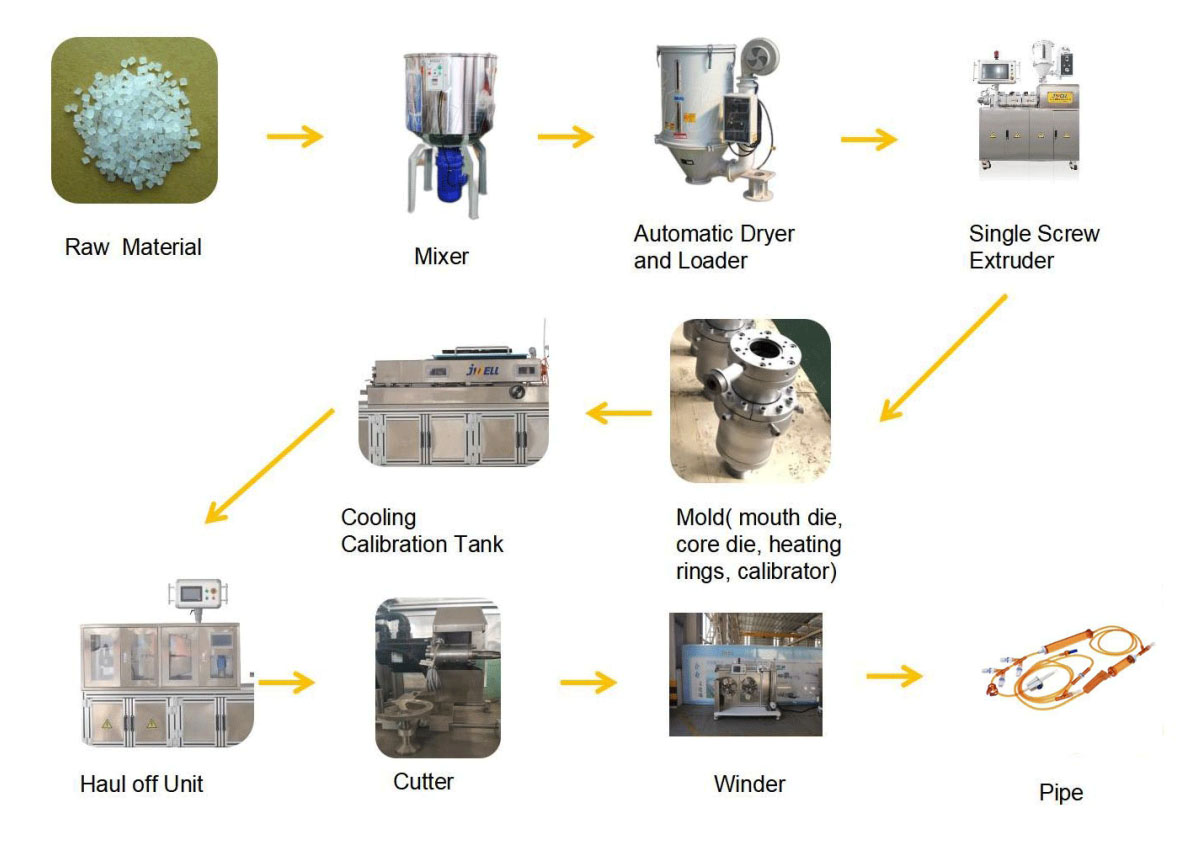

Process steps
Reviews
-
This is not the first time i order Jwell's machine.
This is not the first time i order Jwell's machine.The machine is very good,simple operation,longlife usage.Since 2003,we met in plastic exhibition.It's a good experience for that time we got together to discuss the pipe machine.
Geoge
France
-
Good quality,good cooperation.
Good quality,good cooperation.It is a very pleasant experience with Jwell.All people are very kind and responsible.Kevi Zhou is so amazing through out my whole process and was great with communication.Hope we can have a long cooperation.
Mohanmoud
Egypt -
A most trustworthy company i have ever met!
A most trustworthy company i have ever met!We have connected for a long time for our process.From big project to very small problem,jwell always is patient to help me.Thanks a lot for Jwell the effort.
Jace
Poland
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
