HDPE,PP Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line
HDPE,PP Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line
HDPE,PP Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line
HDPE,PP Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line

HDPE,PP Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line


Place of Origin:China
Brand Name:Jwell
Certification:ISO CE UL TUV
Competitive advantage:
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience
Add to Basket
Applications

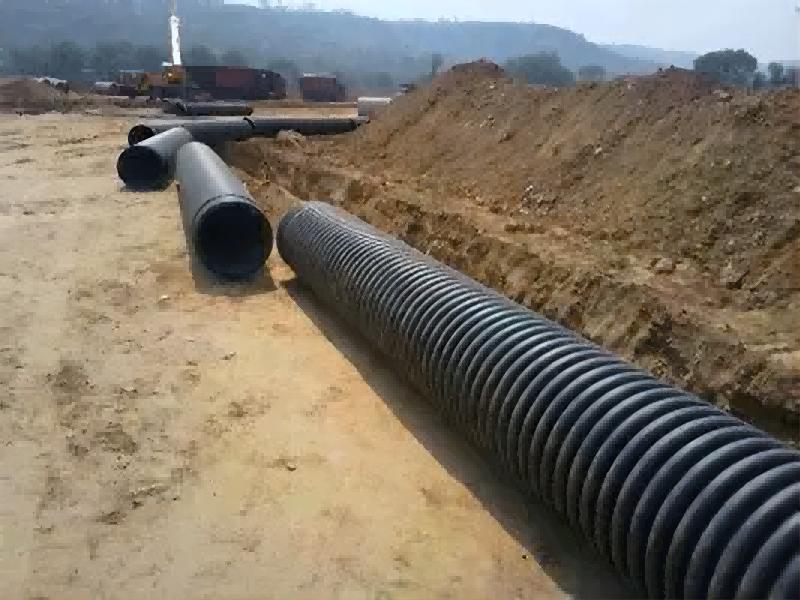

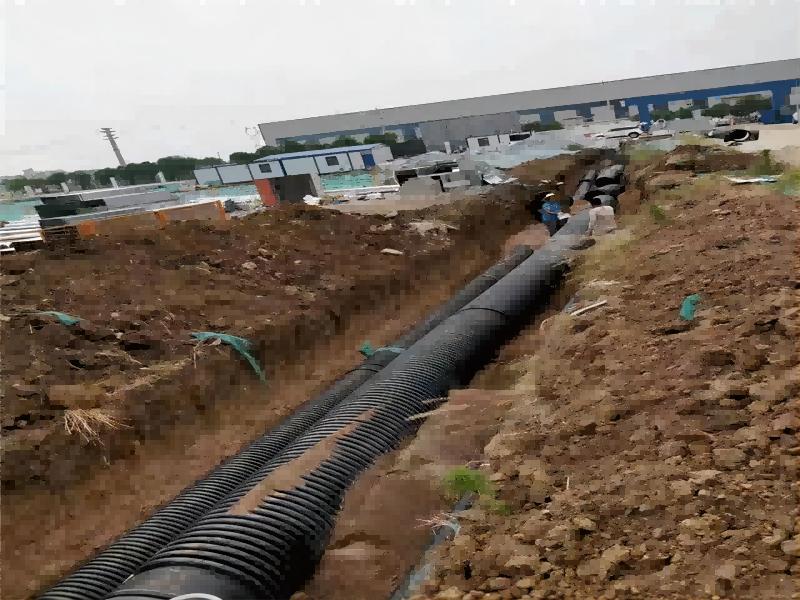

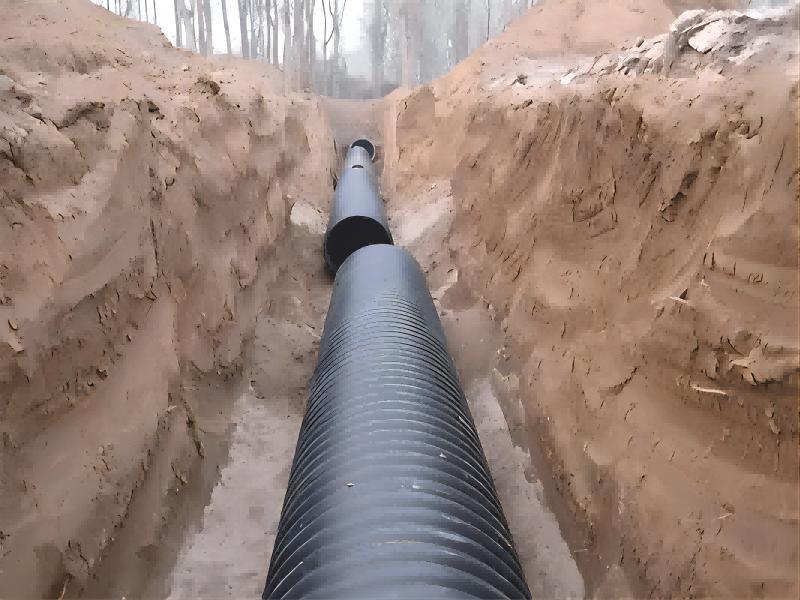

Mainly used in: urban drainage, sewage engineering, drainage engineering, farmland irrigation, sand control engineering, low-voltage water supply system, municipal drainage, sewage pipeline transformation, wire, cable buried jacket and other fields.

Description

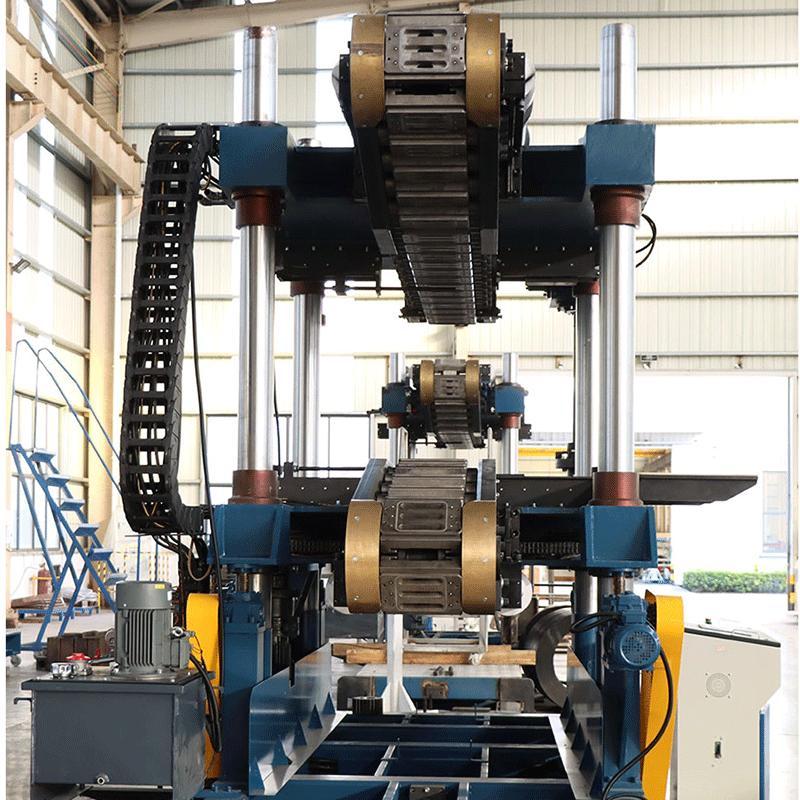

The product is mainly used in urban drainage and sewage systems. The vertical series HDPE double-wall corrugated pipe extrusion line is professionally designed and manufactured with full computer, which has the advantages of high output, stable extrusion and high degree of automation. The extruders can be specially designed according to the customer's raw material condition. HDPE adopts the new high-efficiency single screw extruder. The extruders and heads are highly accurate, the modules are interchangeable, the modules can be cooled by water or air cooling, online flaring can be achieved to ensure the performance index of the formed pipes, the circular double knife cutting machine has excellent cutting accuracy, the whole production line adopts SIEMENS PLC system, which has high self-control function.

Specifications
TypePipe diameter(mmHDPE output(kg/h)Max speed(m/min)Total power(kw)
JWSBL-600200-600400-5003.5500
JWSBL-800200-800700-8003680
JWSBL-1000200-1000900-10002.5710
JWSBL-1200600-1200900-10001710


Process steps
