Jwell Rigid Plastic Single Screw Recycling Pelletizing Machine
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability,worldwide after-sales service, more than 30 years developing experience |
Applications

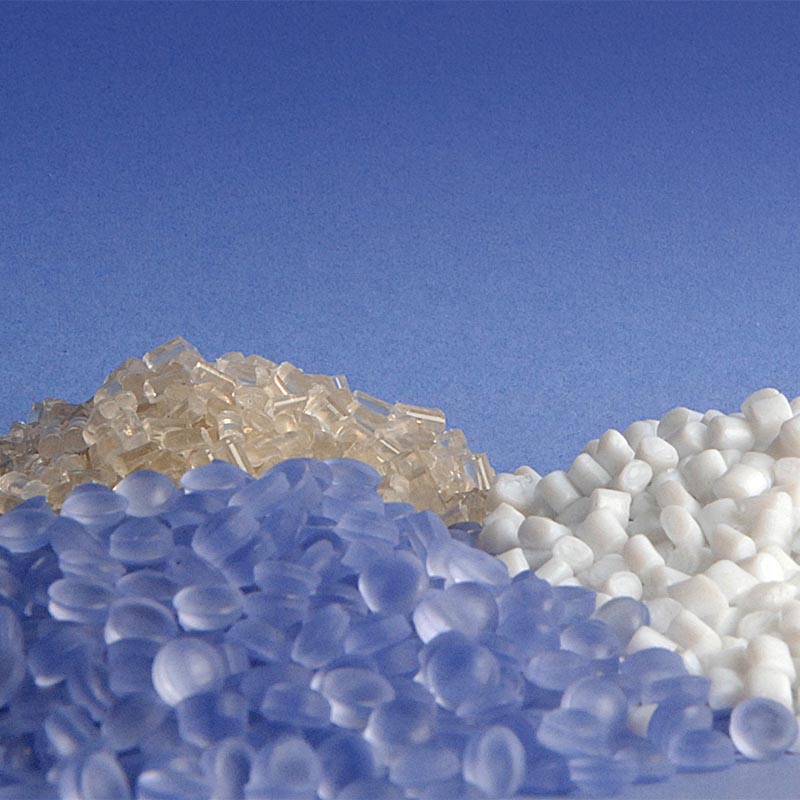

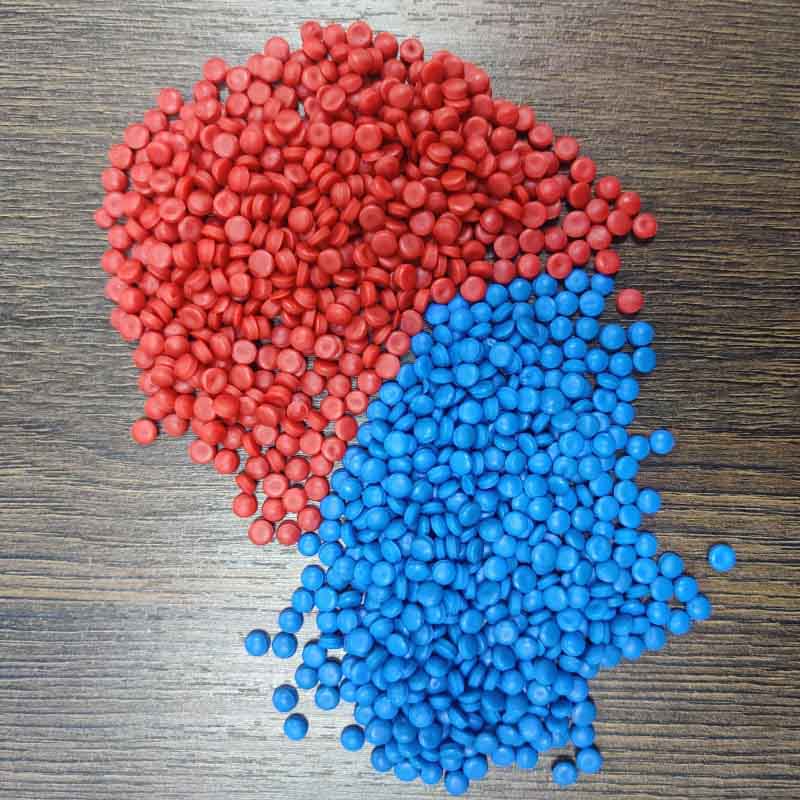

This machine line is suitable for the regeneration and granulation of various plastics such as PP, PE, PS, ABS, and PC,etc.
Description

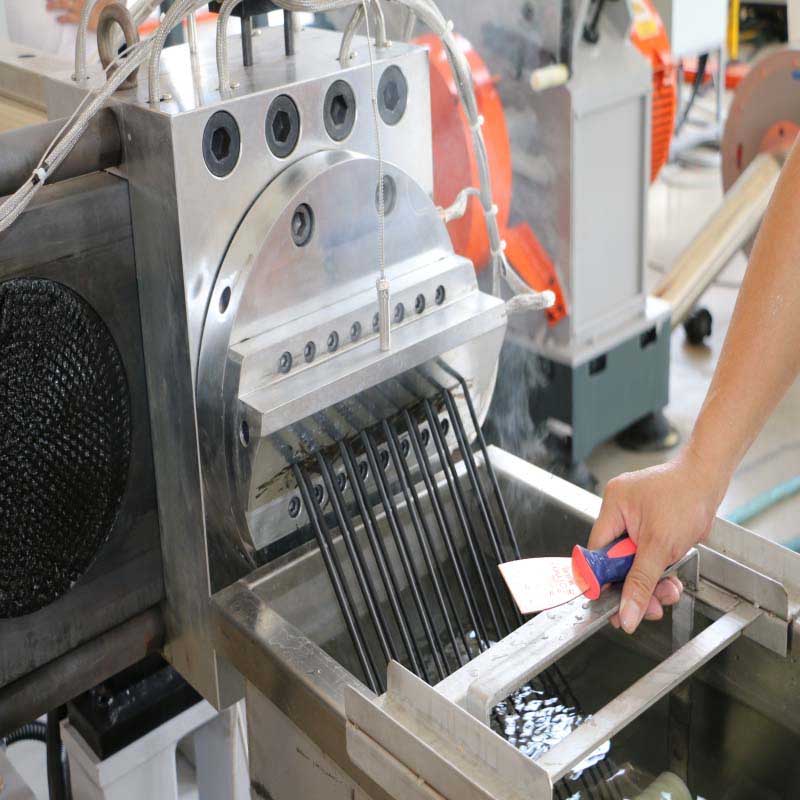

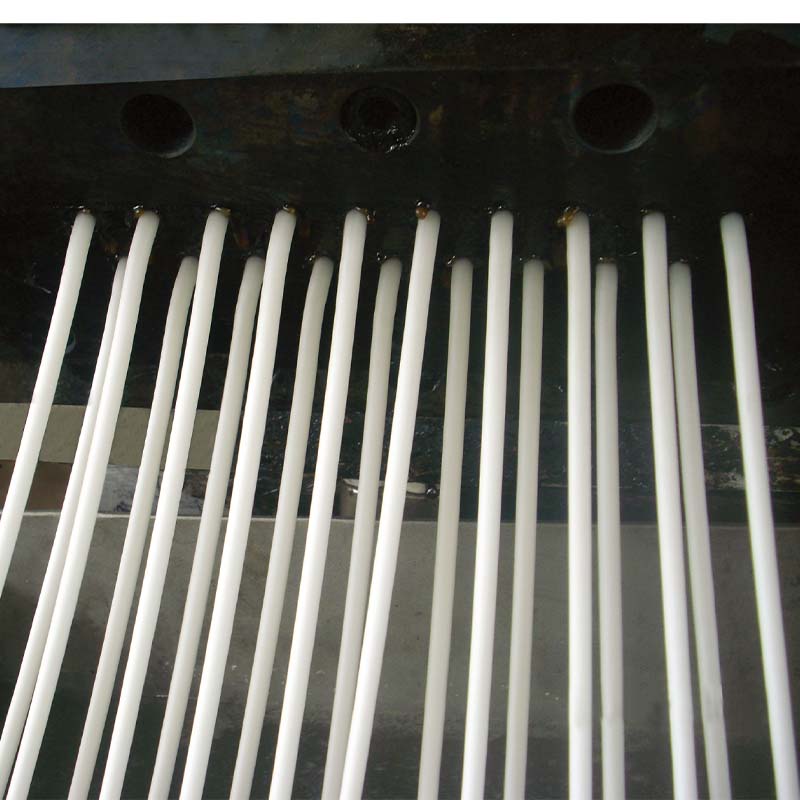

It can be designed as a single-stage or double-stage production line, with strand cutting or water ring cutting. The gearbox is designed with high torque to achieve low noise and smooth operation. The screw and barrel have been specially treated on the surface which has the characteristics of wear resistance, good mixing effect and high output. The design of vacuum exhaust or natural exhaust port can remove moisture and exhaust gas during the production process, making the output more stable and the particles more dense, ensuring the excellent quality of the produced crystal.
Video
Specifications
| MODEL | SCREW DIAMETER (MM) | L/D | SCREW SPEED(RPM) | POWER OF MAIN MOTOR(KW) | OUT PUT(KG/H) |
| JWL65 | 65 | 25-35 | 20-100 | 30-37 | 80-150 |
| JWL90 | 90 | 25-35 | 20-90 | 45-55 | 200-250 |
| JWL120 | 120 | 25-35 | 20-75 | 75-110 | 280-350 |
| JWL150 | 150 | 25-35 | 20-75 | 110-160 | 300-500 |
| JWL160 | 160 | 25-35 | 20-70 | 132-185 | 500-650 |
| JWL180 | 180 | 25-35 | 20-70 | 200-250 | 650-800 |
| JWL200 | 200 | 25-35 | 20-60 | 250-315 | 800-1300 |
| JWL250 | 250 | 25-35 | 20-60 | 315-500 | 1200-1800 |
Process steps
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
