Jwell Waste Fiber Recycling Pelletizing Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE |
| Minimum Order Quantity: | 1 |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
Applications
Description

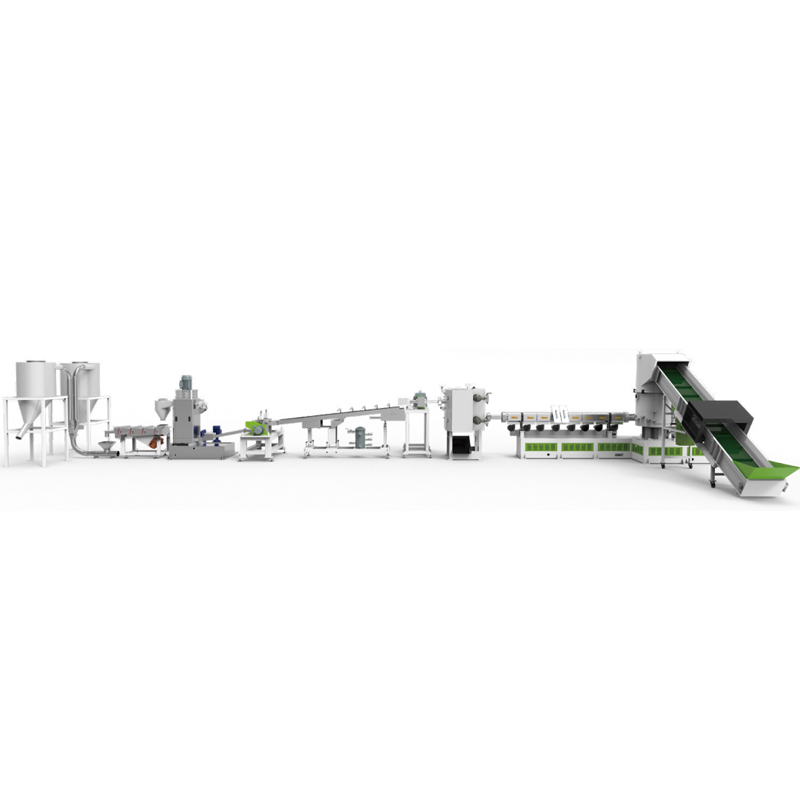

The pre-cutted materials are transported into the compactor through the belt conveyor. The materials are cut, mixed and compacted in the compactor to effectively heat and dry the materials. The knife gate valve design on the compactor automatically controls the screw feeding speed to ensure stable screw operation. Equipped with a high-precision melt filtration system to improve the purity of materials. The entire system can improve particle color and viscosity drop issues. High degree of automation, saving labor.
Specifications
| Model | Screw dia. | L/D | Screw speed(rpm) | Main motor power(kw) | Output(kg/h) |
| JWH90 | 90 | 32-38 | 20-150 | 75-90 | 200-350 |
| JWH120 | 120 | 32-38 | 20-120 | 110-132 | 300-500 |
| JWH150 | 150 | 32-38 | 20-100 | 160-200 | 450-700 |
| JWH180 | 180 | 32-38 | 20-100 | 250-355 | 800-1200 |
Process steps
