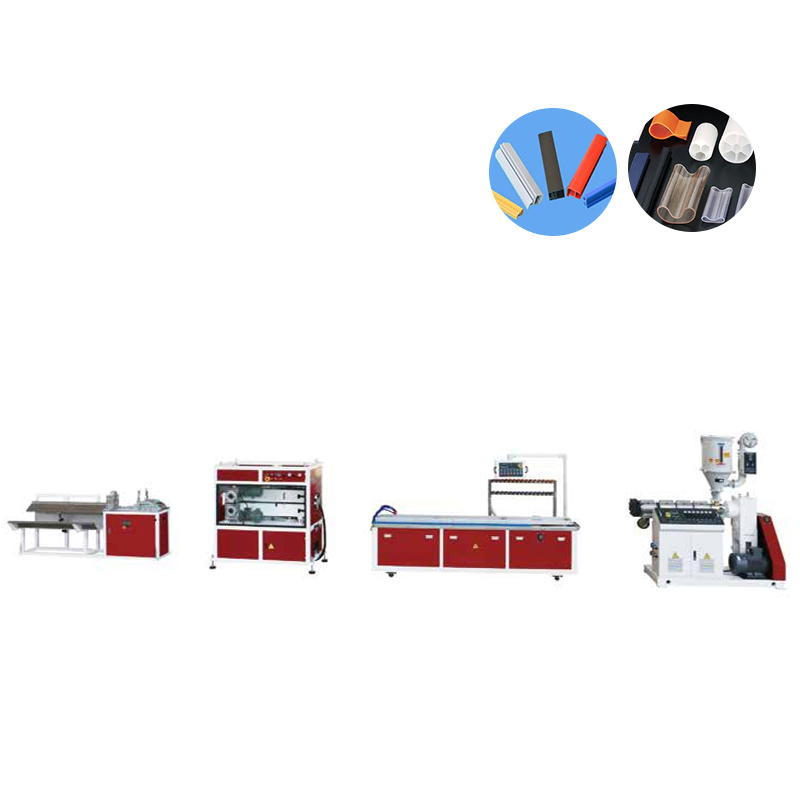

JWELL PVC PP PE PC ABS Small Profile Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications
Widely used in household appliances, automotive, chemical, construction, light industry and other fields.
Description
The company has absorbed advanced technology at home and abroad, and successfully developed a small-scale material production line that suits the needs of users. The production line can select single screw or double rod screw extruders of different specifications according to different profile sections and molds, and be equipped with corresponding auxiliary equipment such as vacuum setting table, haul off unit, cutter, stacker and so on.The main extruder adopts imported AC drive for speed regulation, and the temperature control instrument adopts Japanese OMRON products.Both the vacuum pump and the traction motor adopt high-quality products.
Advantages of line: good plasticization,high output capacity,low power consumption and etc.
Specifications
| Model | YF108 | YF108 | YF180 | YF240 | YF300 |
| Max width(mm) | 108 | 108 | 180 | 240 | 300 |
| Extruder model | JWS45 | JWS50 | JWS65 | JWS90 | JWS120 |
| Power(kw) | 15/11 | 22/18.5 | 30/22 | 55/45 | 90/75 |
| Cooling water(m3/h) | 4 | 4 | 5 | 7 | 7 |
| Compressed air(m3/min) | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 |
