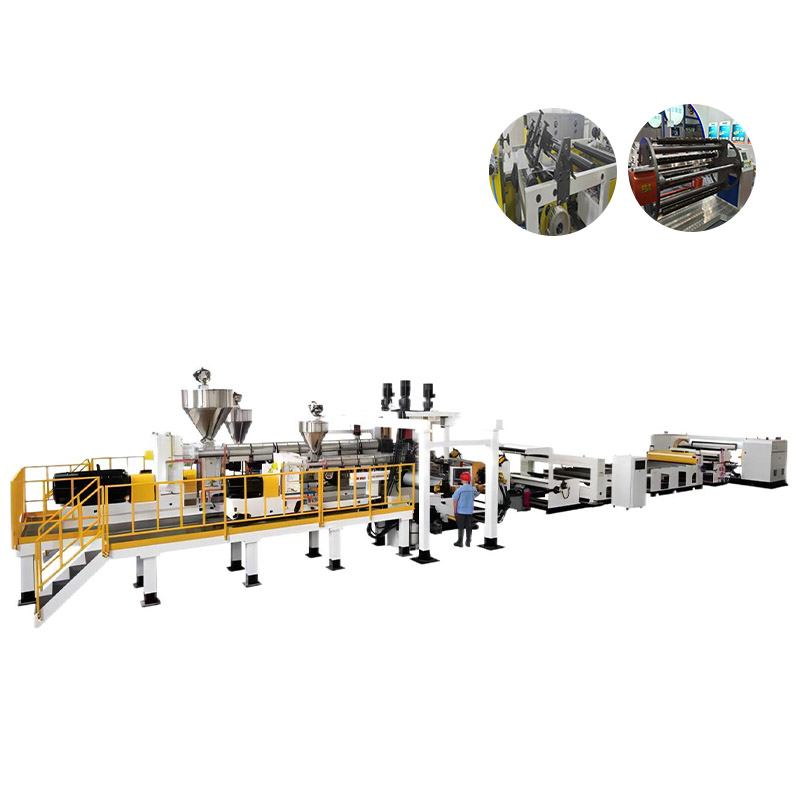

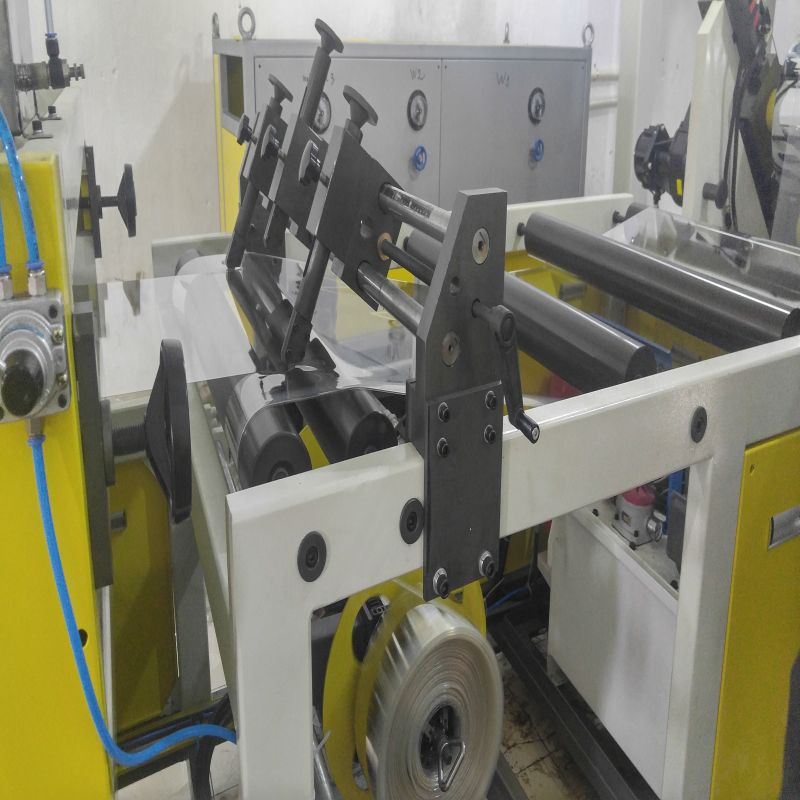

PP/PE Solar Photovoltaic Cell Backsheet Extrusion Machine
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability,worldwide after-sales service, more than 30 years developing experience |
Applications
Automatic gravimetric feeding system makes sure variety of solid, liquid additives and raw materials high-precision feeding.Low-temperature extrusion systems to ensure adequate mixing in the premise of plastination to prevent crosslinking additives. Special design of Casting part give the perfect solution to roller adhibition and water spalling.Special online tempering device to get rid of inner stress.
Description
This production line is used to produce high-performance, innovative fluorine-free solar photovoltaic back- sheets that conform to the trend of green manufacturing; the production line adopts multi-layer co-extrusion technology, and designs a special screw structure according to the rheology of raw materials. The unique tempering setting design, combined with high quality.
Specifications
| Model | Extuder type | Products thickness(mm) | Capacity(kg/h) |
| 3 extruders co-extrusion | JWS75+JWS130+JWS75 | 0.18-0.4 | 750-850 |
| 5 extruders co-extrusion | JWS65+JWS65+JWS120+JWS65+JWS65 | 0.18-0.4 | 800-900 |

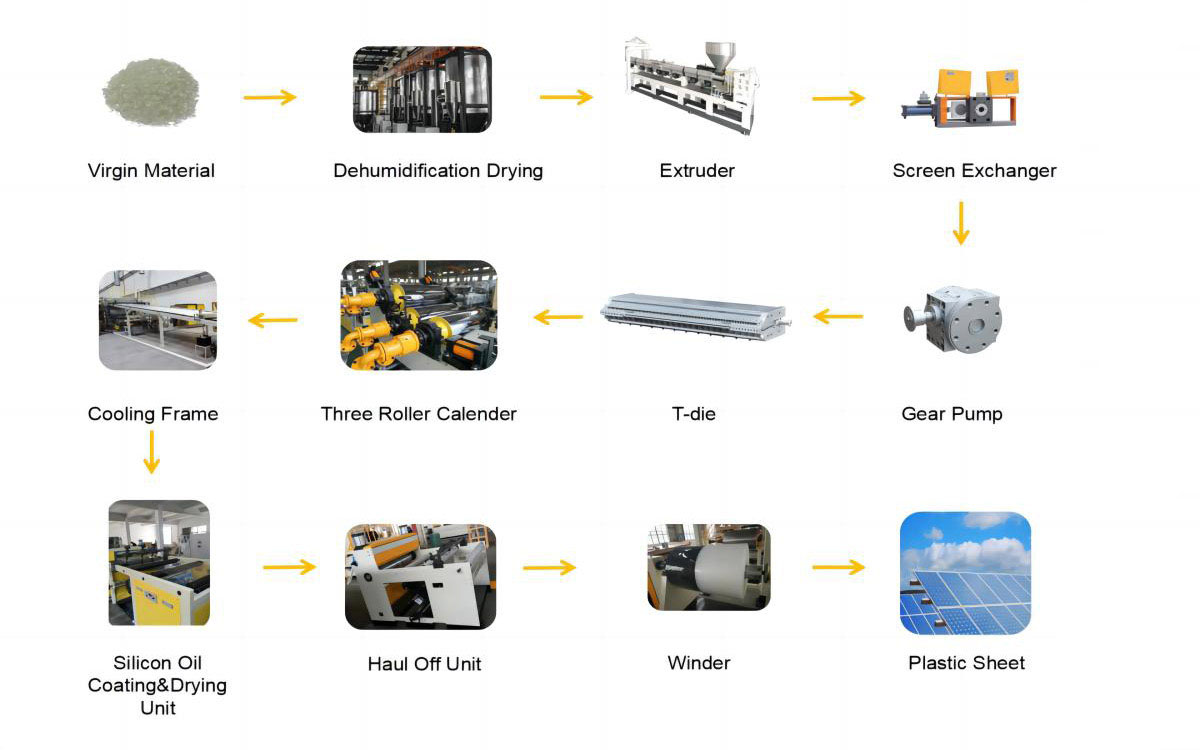

Process steps
Reviews
-
PP thick plate extrusion line
One of the most reliable and trustworthy Extrusion Machine Manufacturers in China.Excellent company that I have worked with for many years. I have never had an issue with any of my product and they have produced hundreds of thousands of feet for me. Highly recommend.
Savan
Vietnam
-
PC sunshine board
I've worked with JWELL for the past 8 years.They are my #1 vendor. They are consistently providing excellent service and perfect quality products...as well, they are really nice folks to work with, who go above and beyond on a daily basis, and when something "special" is needed, they are always willing to accommodate my request.
Wael El-Sayed
Turkey -
HDPE thick plate extrusion line
Very professional and sensible with a willingness to meet the customers needs and requirements. Thanks JWELL, let's continue the great working relationship.Very efficient and fast . Recommended, thanks very much.
Salaheddine Benguiba
Algeria
Shipment
FAQ
Q: What equipment does JWELL mainly produce?
A: All kinds of sheet& plate extrusion lines, pipe extrusion lines, profile extrusion lines, compounding lines, recycling machines, blow-molding machines, chemical fiber equipment and other core parts.
Q: Do you provide installation and commissioning services for overseas projects?
A: Yes, we can provide
Q: Does the machines comply with international certifications CE and ISO?
A: yes.
