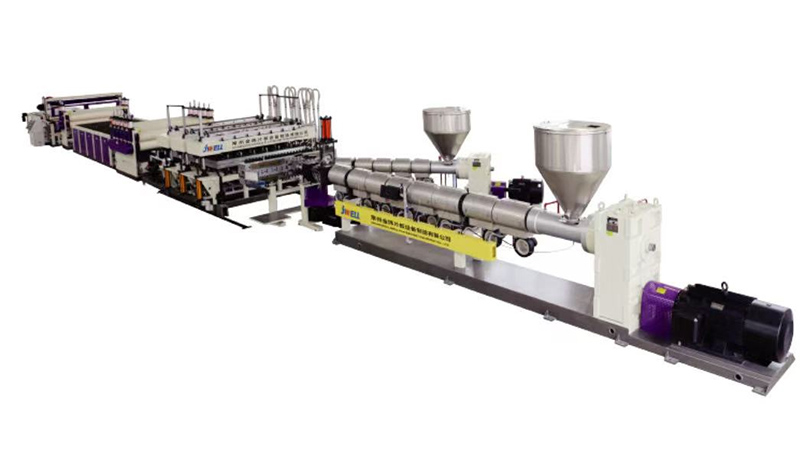

The hollow building board extrusion machine is a production line that goes from automatic feeding to high-speed mixing, and then automatically feeding to the twin-screw extruder. It discharges the material from the large slab mold structure for four-stage shaping and shaping. The row rollers are equipped with cooling devices, trimming devices, tractors, automatic cutting machines, roller conveyors, etc.
Features, usage and precautions of hollow plastic board: The unit has compact structure and superior performance. The screw and barrel are optimized and processed from high-performance alloy steel, giving the whole machine the advantages of uniform plasticization, stable extrusion, high output, and long service life.
Feature
1. Hollow building board has good construction performance and the construction method is basically the same as that of wooden board.
2. No moisture absorption, corrosion resistance, acid and alkali resistance, especially suitable for use in humid environments;
3. High strength, impact resistance, wear resistance, long service life, and can be used more than 40 times;
4. The surface is smooth and clean, no paint release agent is needed, and it can be sawed or nailed;
5. Used waste boards and scraps can be recycled and reused, saving costs and reducing pollution.
How to operate
1. The usage method is the same as that of wooden board. The direction of the vertical ribs of the hollow plastic board forms a cross with the direction of the wood edge.
2. No need to apply release agent before use.
3. When pouring the slab, the keel spacing should be 20-25cm, and the wall keel spacing should be 15-20cm.
4. The joints between boards need to be sealed with tape.
5. The length of the nails should not be too long, generally around 30~35mm.
6. The nail strength should be moderate.
7. When taking the mold, remove the board from one end of the small piece and remove the bracket at the same time to prevent it from falling over a large area and do not let the corners fall vertically to the ground.
8. The board can be mixed with wood plywood, bamboo plywood and other material boards.
