In the industrial wave of widespread plastic product applications, PET sheet materials have occupied a key position in packaging, electronics, medical and other fields with their core properties such as high transparency,excellent toughness, and chemical corrosion resistance. The high capacity pet sheet extrusion line created by JWELL Machinery through technological innovation has become a leading domestic sheet production solution by virtue of advanced processes, stable performance and high-efficiency production capacity.The production line not only improves the comprehensive efficiency by about 30% compared with similar domestic equipment, but also is compatible with the production of multiple materials such as PLA, APET, PETG and CPET.Moreover, PET products can be recycled, which is deeply in line with the concept of circular economy and environmental protection.
Main Features of the PET sheet extrusion line

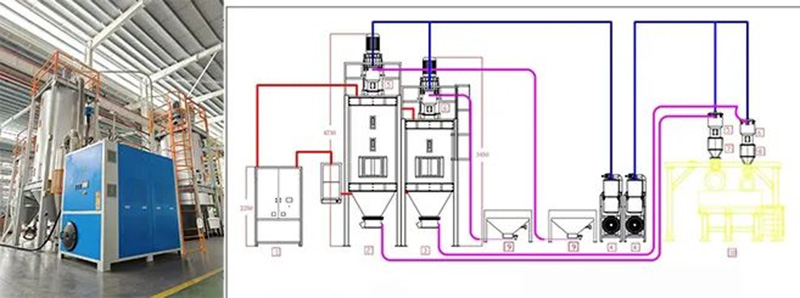

Crystallization ,Dehumidification and Drying System
The three-stage treatment system, consisting of a crystallization barrel, dehumidifier and drying tower, prevents raw material agglomeration through crystallization pre-plasticization, Subsequently, through the dual effects of physical adsorption by the dehumidifier and heat conduction in the drying tower, the moisture content of the raw materials is controlled at an extremely low level. This process significantly enhances the melting uniformity of PET pellets, laying a solid foundation for subsequent plasticizing extrusion and ensuring the quality of the sheets.
PLC and HMI Intelligent Control System
Through the linkage between the industrial-grade PLC (Programmable Logic Controller) and HMI (Human-Machine Interface), dynamic collaborative control and real-time data feedback across the entire production process are achieved.
● Intuitive and concise operation interface with high automation.
● Swift detection and response to production anomalies, ensuring stable and efficient operation throughout the process.
PLC and HMI Intelligent Control System
As the core forming equipment, this extruder is specifically designed for high-quality PET sheets:
● Performance Advantages: When using virgin pellet raw materials, it produces sheets with high transparency,high viscosity, and excellent tensile properties, meeting the stringent requirements of large-scale thermo formed products.
● Production Specifications: It can produce products with a thickness range of 0.08-2mm. The Maximum output of the entire production line can reach 1,200 kg/h and High-speed co-extrusion lines with 2-3 extruders: 1,000-3,000 kg/h, flexibly adapting to diverse requirements.
Screw and Barrel Composite Process
● Structural Innovation: The screw is manufactured using multi-material composite technology. After nitriding and quenching and tempering treatments, it features high surface hardness and excellent abrasion resistance. The special thread design optimizes material conveying efficiency,ensuring uniform plasticization and superior melt dispersibility.
● Energy-Saving Design: The barrel is equipped with far-infrared heaters, which are more energy-efficient than traditional resistance heating. They offer faster temperature rise and more uniform temperature field distribution.
T type mold
The T-type mold, featuring a hanger-type runner design and high-quality mold steel ensures a long service life and enables the production of high-precision, high-quality sheets.
J-type Three-roller Calender
● Mechanical Structure: The ]-type layout optimizes the force balance of the roller system. The working width of the rollers reaches 1,600 mm, and the mirror roller smoothness and cleanliness level is ≤0.016 um.
● Drive Control: Equipped with a servo motor drive system, it features fast response speed and high roller speed control precision, enabling high-precision control of sheet thickness uniformity.
X-ray On-line Thickness Measurement System
The integrated high-precision X-ray thickness gauge conducts real-time scanning and monitoring of the sheet thickness. After the data is analyzed by the algorithm, it is synchronously fed back to the extruder and three-roll system to ensure that the thickness fluctuation of the sheet is controlled within a small range.
Multi-station Center Winding System
Adopting multi-station continuous winding, it supports continuous winding operations with large winding capacity and high efficiency.

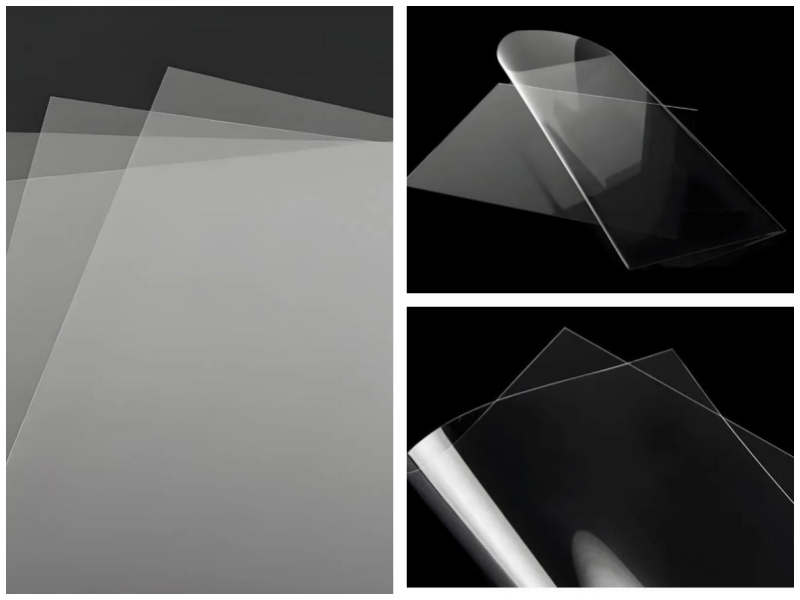

Product Advantages & Applications
● Low Mass: With a low density, it is over 50% lighter than glass in the same volume, significantly reducing transportation costs and energy consumption.
● Safe and Non-toxic: Certified for food contact, it contains no harmful substances and can directly contact food and pharmaceuticals.
● Recyclability: 100% recyclable, enabling circular utilization through physical recycling (melting and pelletizing)or chemical recycling (depolymerization to monomers),aligning with sustainable development trends.

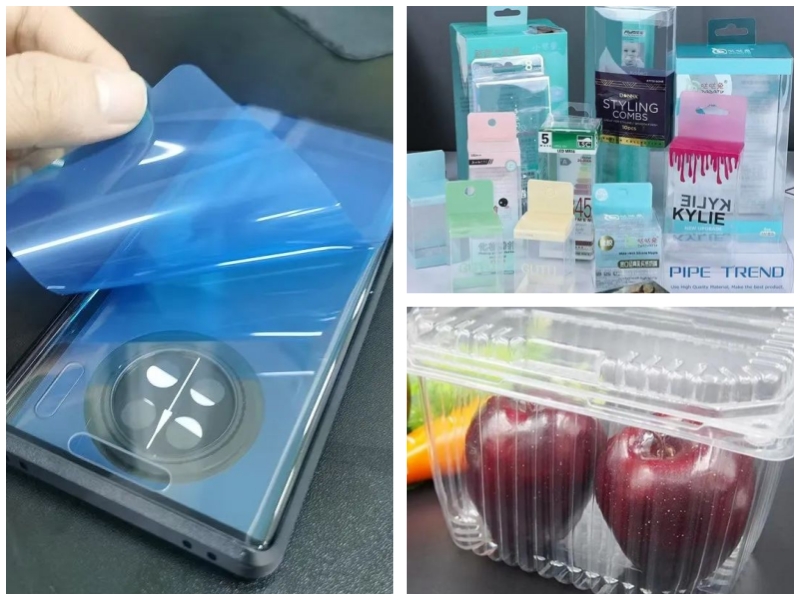

● Application Fields: Widely used in various industries such as food packaging, medical packaging, daily necessities, cosmetic packaging ,protective film for electronic products, and etc.
