High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line
High Pressure RTP Twisted Composite Pipe Extrusion Line

High Pressure RTP Twisted Composite Pipe Extrusion Line


Place of Origin:China
Brand Name:Jwell
Certification:ISO CE UL TUV
Competitive advantage:
High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience
Add to Basket

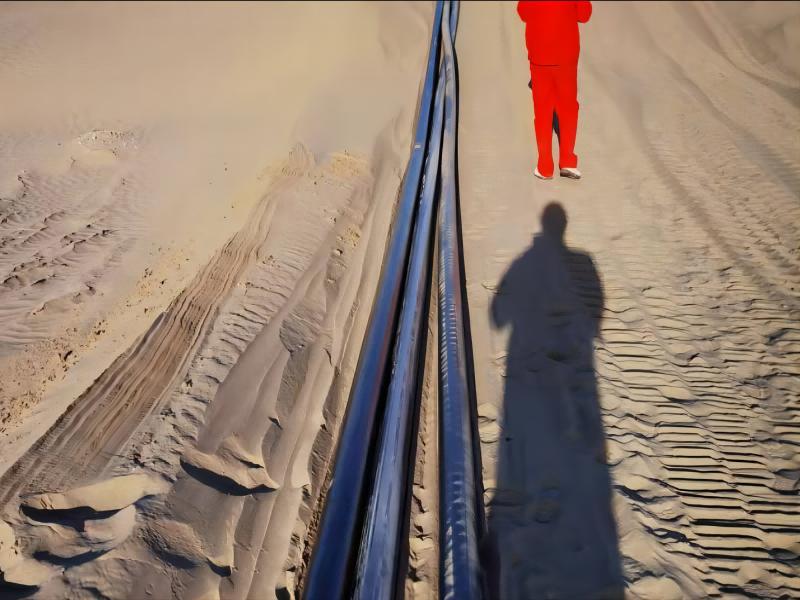

Applications

RTP winding reinforced composite pipe is a new type of plastic composite pipe with high pressure resistance, corrosion resistance and good flexibility.  Used in petroleum, water supply and other high pressure conveying environment.The inner layer is corrosion-resistant and wear resistant polyethylene pipe, the middle layer is reinforced winding layer, and the outer layer is protective polyethylene layer.

Description

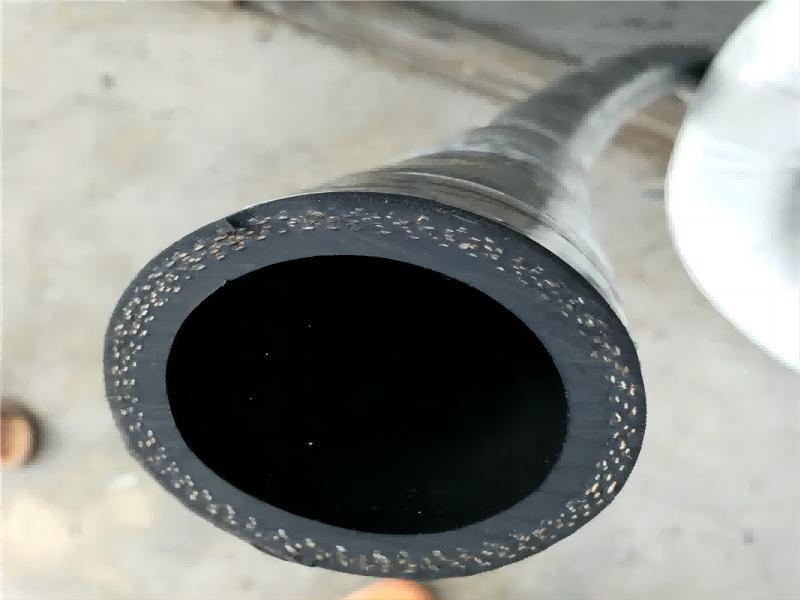

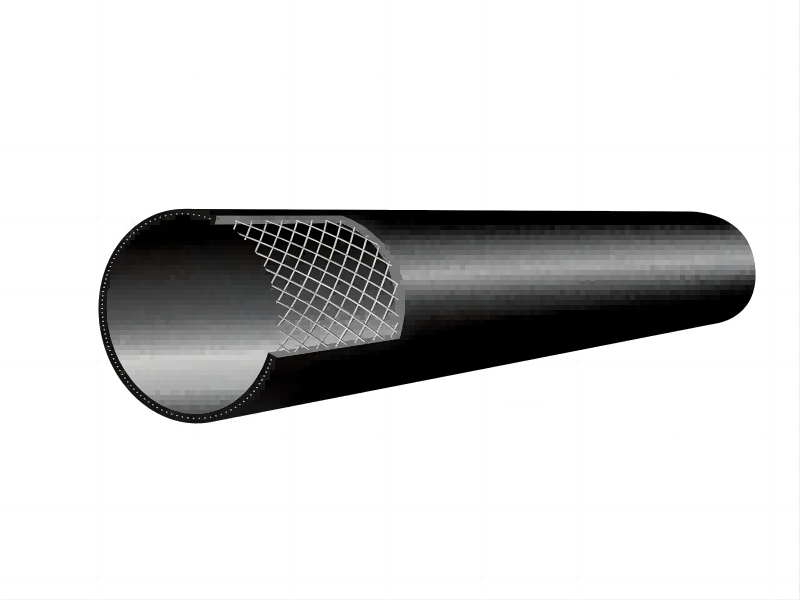

Most of the plastic reinforced pipes RTP have a three-layer structure, the inner layer is a corrosion and abrasion resistant polyethylene pipe (PE100), the middle layer is a reinforced winding layer (winding materials include high strength synthetic fiber, glass fiber, carbon fiber, metal iron sheets and fine metal wires) and the outer layer is a protective polyethylene (PE100) layer.  The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The burst pressure can be 40Mpa.

Specifications
 TypeModel(mm)Extruder Output(kg/h) Power(kW)
JWG-RTP-160Ø63~Ø160JWSG-65/33120-300160
JWG-RTP-250Ø75~Ø250JWSG-75/38300-500210
JWG-RTP-315Ø110~Ø315JWSG-75/38400-600230

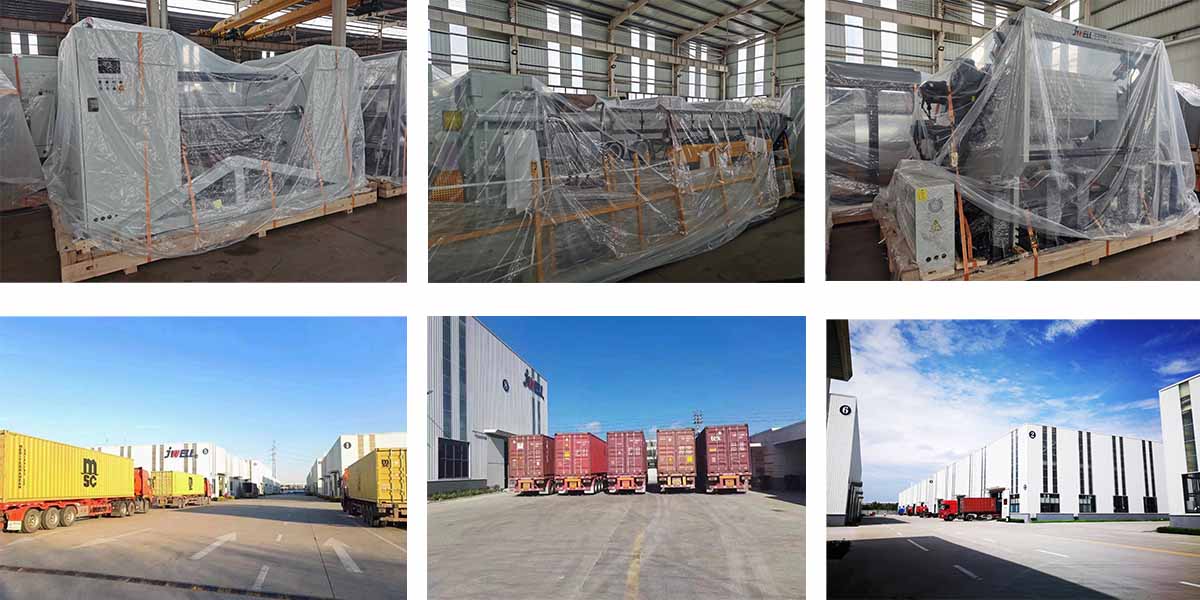

Shipment

packing
