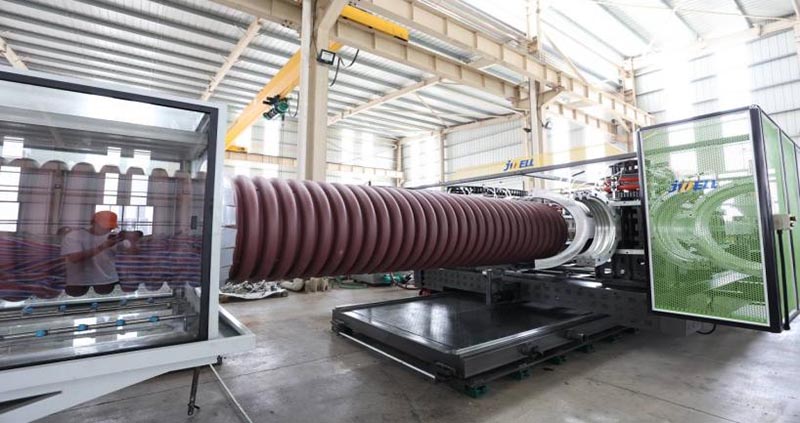

Horizontal double-wall corrugated pipe production line: efficient and reliable pipe production solution

In modern industry and infrastructure construction, double-wall corrugated pipes are widely used in drainage, sewage, power communication pipelines, agricultural irrigation and other fields due to their high strength, corrosion resistance and light weight. In pipe production equipment, Jwell Machinery, relying on years of R&D experience and technological innovation, has launched a horizontal double-wall corrugated pipe production line, providing customers with efficient and reliable production solutions.

Application areas of double-wall corrugated pipes

Double-wall corrugated pipes are characterized by light weight, high strength, corrosion resistance and convenient construction, and are widely used in drainage and sewage, power and communication pipelines, agricultural irrigation, municipal engineering and other fields. Its special double-layer structure not only enhances the pressure resistance of the pipe, but also prolongs its service life.

Advantages of Jwell Horizontal Double-Wall Corrugated Pipe Production Line

The horizontal double-wall corrugated pipe production line newly developed by JWELL is a new generation of horizontal pressure water cooling production line independently developed on the basis of fully absorbing advanced technologies at home and abroad, and has more than ten invention patents.

Advanced extrusion system

There are many types of extruders to choose from, which can realize the production of various HDPE and PP pipes, and can also meet the production needs of single-wall corrugated pipes. The sizing sleeve is made of aluminum alloy and the surface is treated with wear resistance; the pipe waveform is calculated by a special software program to obtain better ring stiffness at the same meter weight. Through precise temperature control and extrusion speed adjustment, the wall thickness of the pipe is uniform, the surface is smooth, and the quality is stable.

Modular forming molds

The sliding base of the molding machine is gear-driven and equipped with large-size needle bearings, which improves the bearing capacity of the sliding base; it runs more smoothly and has a longer service life. The production line has a fixed center height, and no adjustment is required when changing specifications. The modules of production lines of different specifications are universal; the quick-release module design makes the module loading and unloading convenient and fast; the unique module internal cooling design allows the cooling water to flow quickly inside the module, realizing the rapid cooling and shaping of the pipe; the main drive is driven by a dual-speed motor, which can achieve stable and precise operation.

Intelligent control system

The control system consists of advanced PLC and large-screen color LCD display. It can be adjusted on a single machine and linked across the entire line. It is easy to operate, has stable and reliable production, a high degree of automation, automatic fault alarm, a friendly operation interface, and real-time monitoring of production status.

Energy-saving and environmentally friendly design

Jwell always adheres to the concept of green production. The equipment has low energy consumption, stable operation, and reduces waste generation. The horizontal design also optimizes space utilization and is suitable for small and medium-sized factories.

Unique features of horizontal design

Small footprint

The compact layout design saves customers valuable factory space.

Convenient operation and maintenance

The horizontal structure makes the operation and maintenance of each link more convenient, and improves the working efficiency of the production line.

Greater stability

Raw materials are transported smoothly, and fewer production defects occur during the molding process, ensuring the high quality rate of the finished product.

Jwell horizontal double-wall corrugated pipe production line is an ideal choice for producing high-quality pipes. Whether you are supporting large-scale municipal projects or meeting special needs in the industrial and agricultural fields, this equipment can bring you excellent performance and reliability. Choosing Jwell means choosing reliable quality and professional service!
