What are the advantages of JWELL PEEK special plastic plate, rod production line?

At present, under the trend of lightweight, PEEK is expected to replace steel with plastic and become the core material in the structural parts of many terminal fields such as automobile industry + 3D printing + robot + electronics + aerospace + medical treatment. With the development of the terminal market, its demand is expected to usher in a large growth.

It is expected that the sales volume of PEEK market in China will reach 5,078.98 tons in 2027, and the sales volume will also reach 2.838 billion yuan. Among them, in the fields of automobile, electronic information, industrial machinery and energy, medical and health care, and aerospace, the domestic PEEK market size is expected to reach 687 million yuan, 880 million yuan, 548 million yuan and 104 million yuan respectively in 2027.

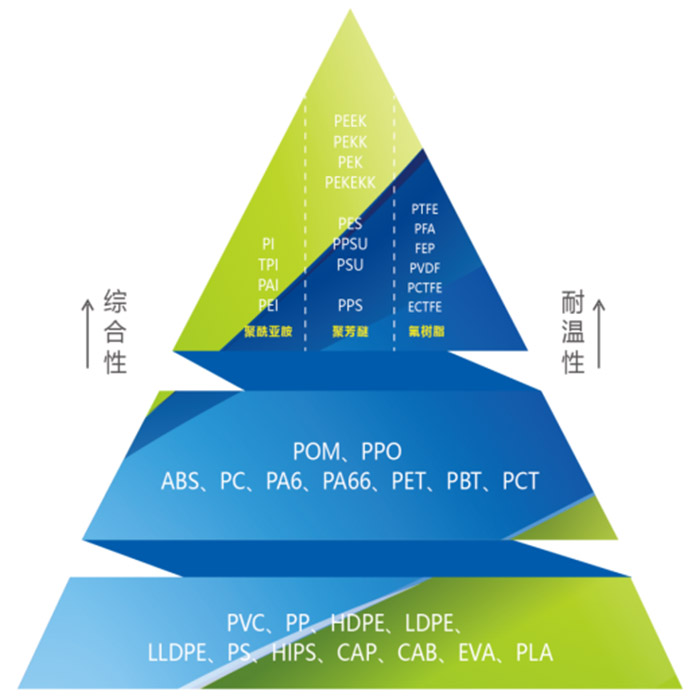

PEEK is a new generation of lightweight and high-performance dual-use special engineering plastics.  PEEK is at the top of engineering plastics in terms of performance and commercial value.

The PEEK has the following excellent performance

Very high heat resistance

Can be used in 250 C for a long time, the instantaneous use temperature can reach 300 C, in 400 C short time almost no decomposition.

Excellent mechanical properties and dimensional stability

PEEK can maintain high strength at high temperature, and the bending strength at 200 C can still reach 24 MPa, which is especially suitable for manufacturing components that can work continuously at high temperature. In addition, PEEK also has good creep resistance, can withstand great stress during the use period, will not produce a significant extension due to the extension of time.

Excellent chemical drug resistance

Even at high temperature, PEEK can also resist the corrosion of most chemicals very well, and its corrosion resistance is similar to that of nickel steel. The only one that solves PEEK is concentrated sulfuric acid.

Good hydrolysis performance

Can resist chemical damage from water or high-pressure water vapor. Under high temperature and high pressure conditions, the PEEK components can work continuously in the water environment while still maintaining good mechanical properties. If soaking in 100 C for 200 days, the intensity remained almost unchanged.

Good flame retardant performance

Can reach UL 94 V-0 level, self-extinguishing, in the flame condition release of smoke and toxic gas less.

Good electrical performance

PEEK keeps its electrical performance constant over a wide range of frequencies and temperatures.

Strong radiation resistance

The PEEK has a very stable chemical structure, and the PEEK components can also work properly at high doses of ionizing radiation.

Good toughness

The fatigue resistance to alternating stress is the most outstanding of all plastics, comparable to alloy materials.

Excellent friction resistance and wear resistance

Can maintain a very high wear resistance and a low friction coefficient at 250 ℃

Good processing performance

Easy to extrusion and injection molding, and high molding efficiency.

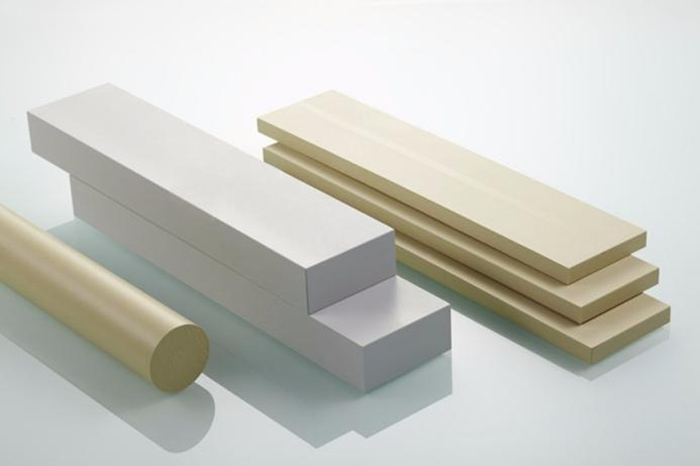

Features of the PEEK/PPS/PEI/PSU And Other Special Plastic Plate, Rod And Pipe Production Lines

● The production line adopts integrated design, with compact structure and easy operation.

● The screw structure of the extruder is specially designed for PEEK and other special plastics. The screw barrel is made of special imported alloy steel, with high strength, corrosion resistance and no shedding to ensure product quality.

● The sizing table adopts a new sizing structure, which is convenient for online adjustment of center height and process temperature.

● The tractor adopts damping design, and the power is controlled by servo motor and starreducer to realize stable operation.

● The cutting machine adopts imported motor and saw blade. The specially designed program and customized saw blade can prevent the product from edge collapse during cutting.

● The whole machine adopts Siemens PLC and touch screen linkage, which can be operated and monitored remotely.

● It has strong versatility. By changing the mold, the same production line can be used for plate, bar, thick wall pipe, etc.
